Alignment




FRONT WHEEL ALIGNMENT

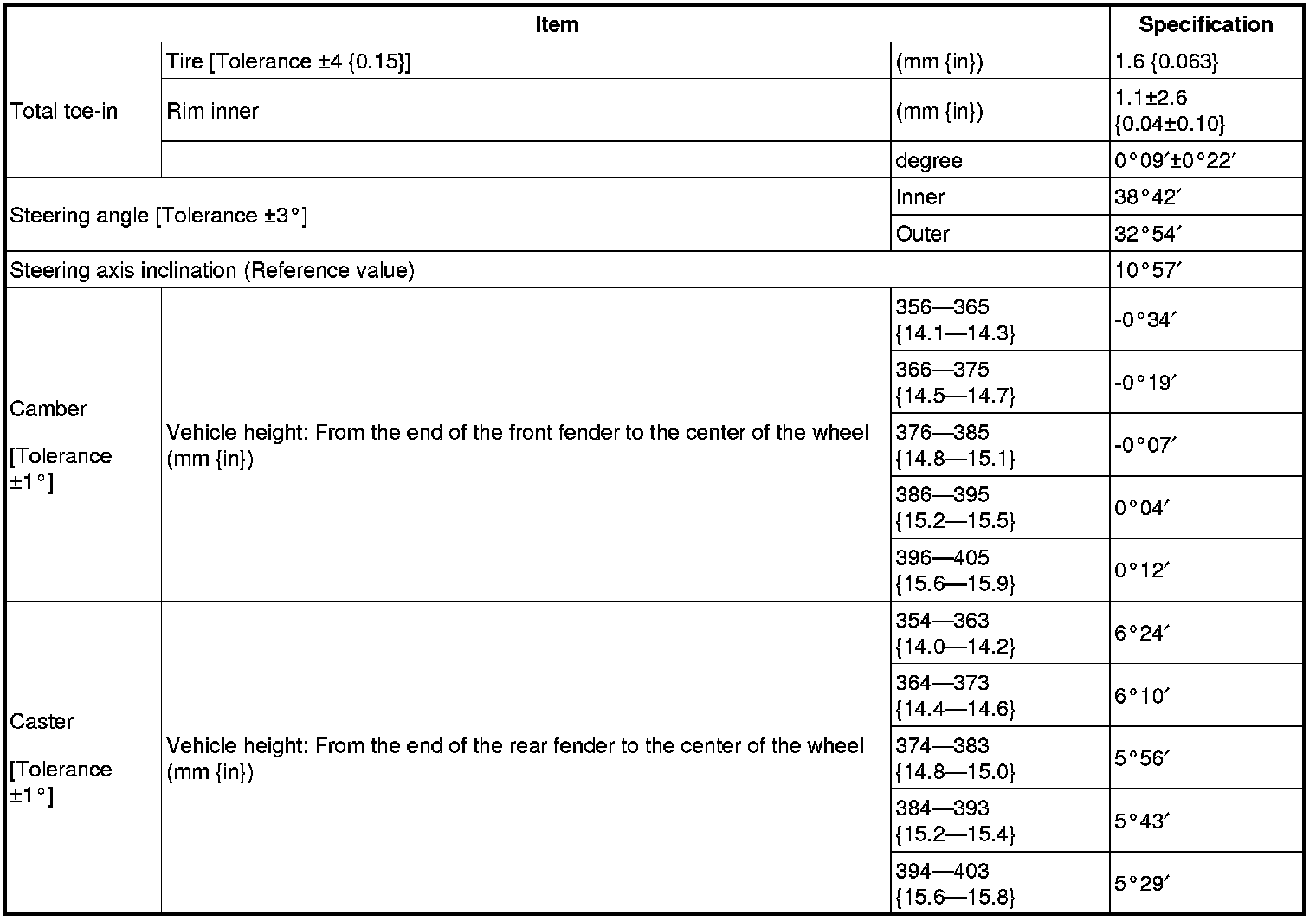

Front wheel alignment [16-inch wheel]





Front wheel alignment [17-inch wheel]





NOTE:
- Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
- Difference between the left and right dimension for camber and caster is within 1°.

REAR WHEEL ALIGNMENT

Rear wheel alignment [16-inch wheel]





Rear wheel alignment [17-inch wheel]





NOTE:
- Unloaded vehicle: Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
- Difference between the left and right camber angle is within 1°.

Ride Height

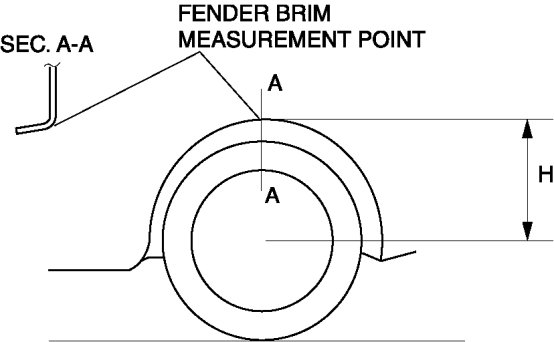

Measure height H from the center of the wheel to the fender brim.






Verify that the difference between the left and right dimension H is within the specification.

If it exceeds the specification, repeat the Step 2-7.

Standard 10 mm {0.39 in} or less

*: Unloaded vehicle.Fuel tank is full. Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
