P66M-D

NEUTRAL SWITCH REMOVAL/INSTALLATION [P66M-D]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Loosen the starter installation bolts only enough that the starter is loose, but not removed. Removal and Replacement

4. Remove the transmission. P66M-D

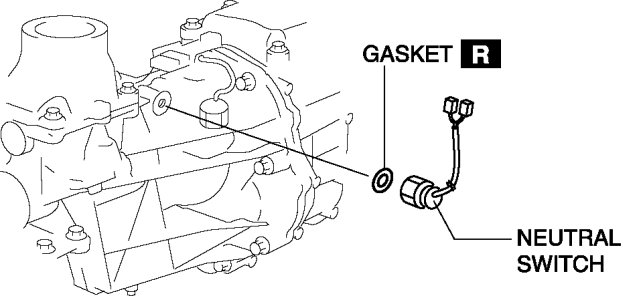

5. Disconnect the neutral switch connector and remove the neutral switch with the gasket.






6. Install the neutral switch (with a new gasket) to the transaxle case.

Tightening torque
- 23.6-35.3 Nm {2.41-3.59 kgf-m, 17.5-26.0 ft-lbf}

7. Install in the reverse order of removal.
