Entertainment Systems: Testing and Inspection




ENTERTAINMENT PERSONALIZATION FEATURES SETTING PROCEDURE

Welcome Mode ON/OFF Setting

NOTE:
- WELCOME mode is controlled by the instrument cluster. Refer to the instrument cluster description.

1. Refer to Instrumentation/Driver Info. Personalization Features Setting Procedure.

Welcome Sound ON/OFF Setting

1. Switch the ignition to ACC or ON.

2. Turn the audio unit power to ON.

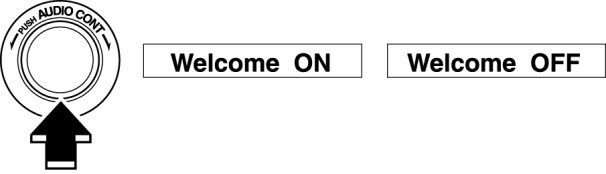

3. Press the AUDIO CONT switch.

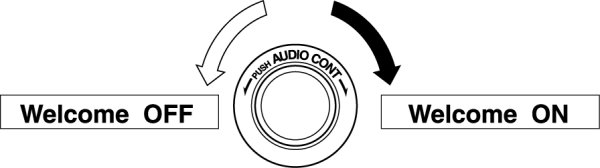

4. Select "Welcome ON" or "Welcome OFF".

5. Press the AUDIO CONT switch.

6. Select "ON" or "OFF".






Action Illumination ON/OFF Setting

1. Switch the ignition to ACC or ON.

2. Turn the audio unit power to ON.

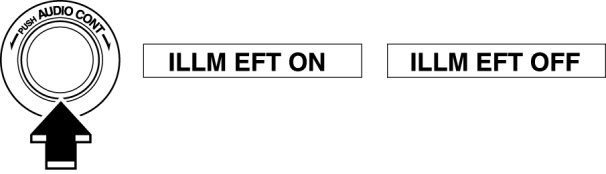

3. Press the AUDIO CONT switch.

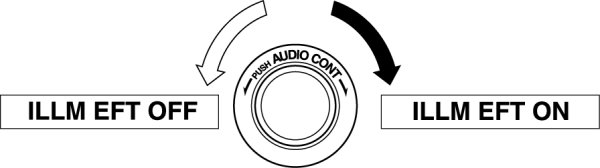

4. Select "ILLM EFT ON" or "ILLM EFT OFF".

5. Press the AUDIO CONT switch.

6. Select "ON" or "OFF".
