Troubleshooting Index
FOREWORD [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]NOTE: -
The car-navigation unit indicated in this section refers to the car-navigation unit with an integrated multi information display.

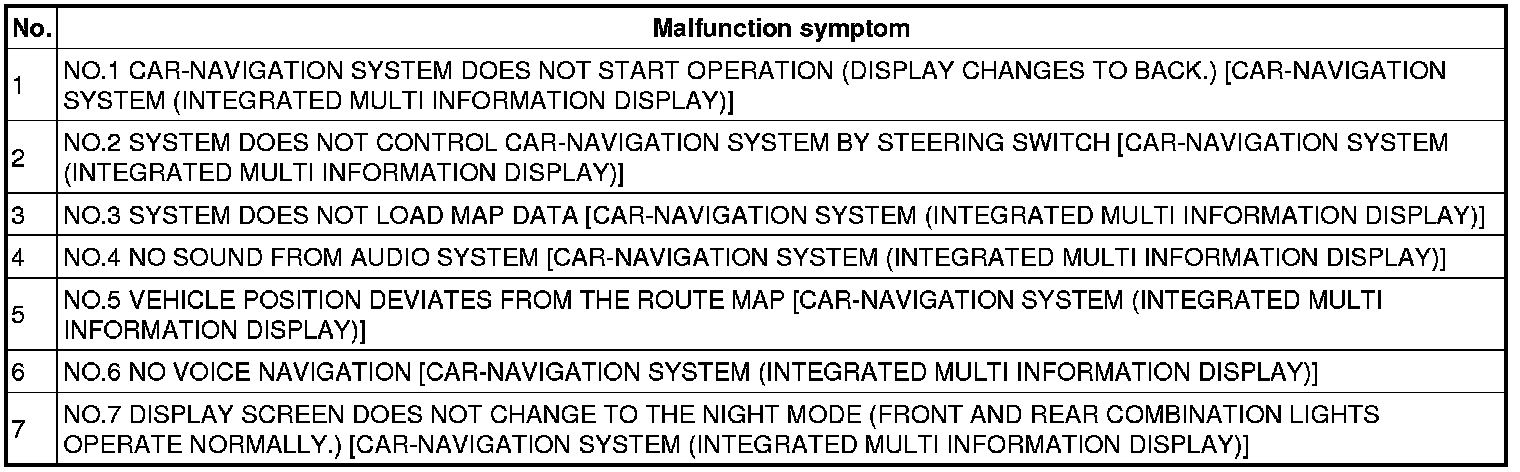

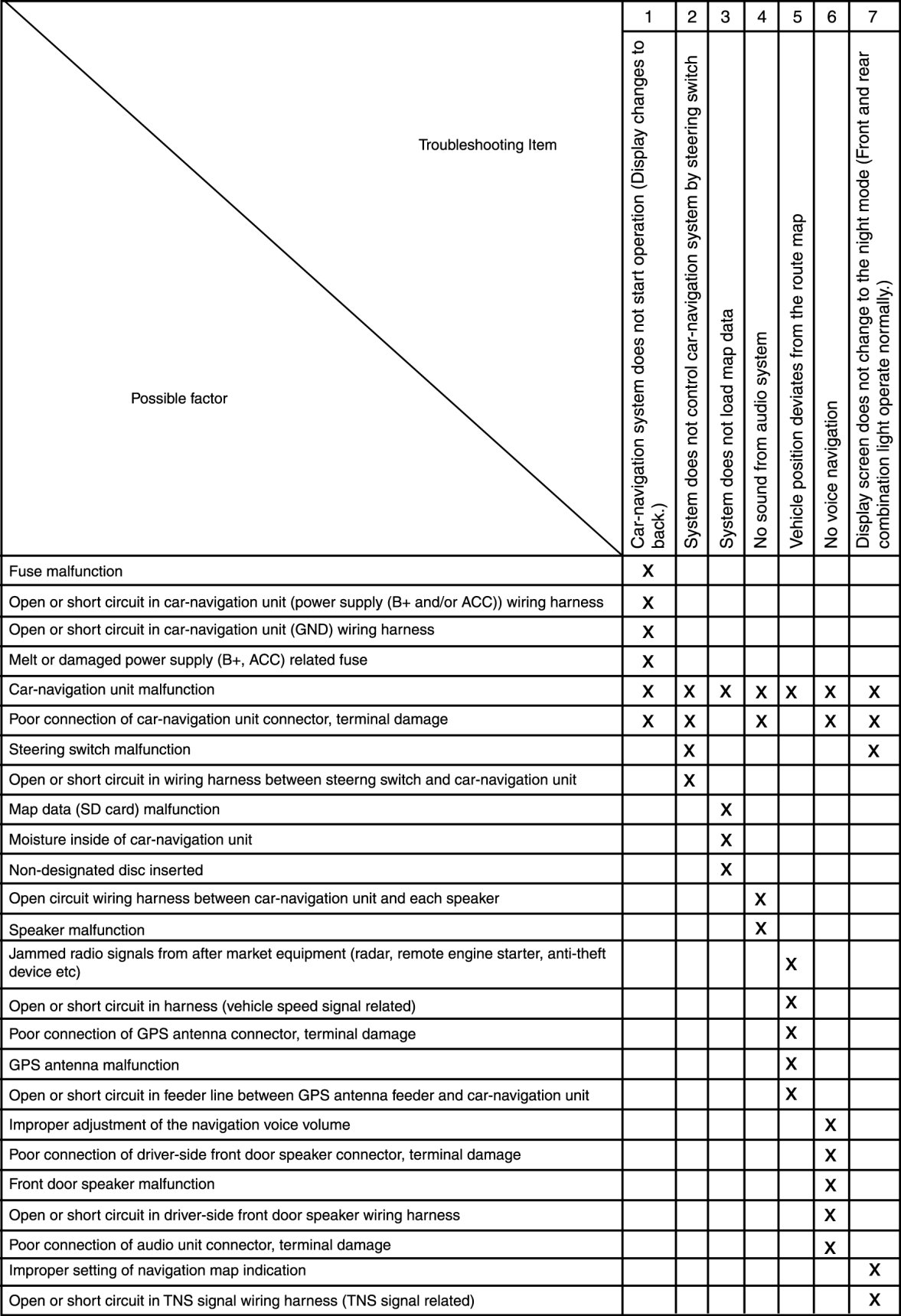

Troubleshooting IndexQuick diagnostic chartQuick Diagnostic Chart:
