No. 4 After Engine Start, Electrical Devices Do Not Operate




NO.4 AFTER ENGINE START, ELECTRICAL DEVICES DO NOT OPERATE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]





NOTE:
- Even if the advanced key is inside the vehicle, the advanced start function may not operate if the advanced key is in a poor signal reception location such as the door pocket.

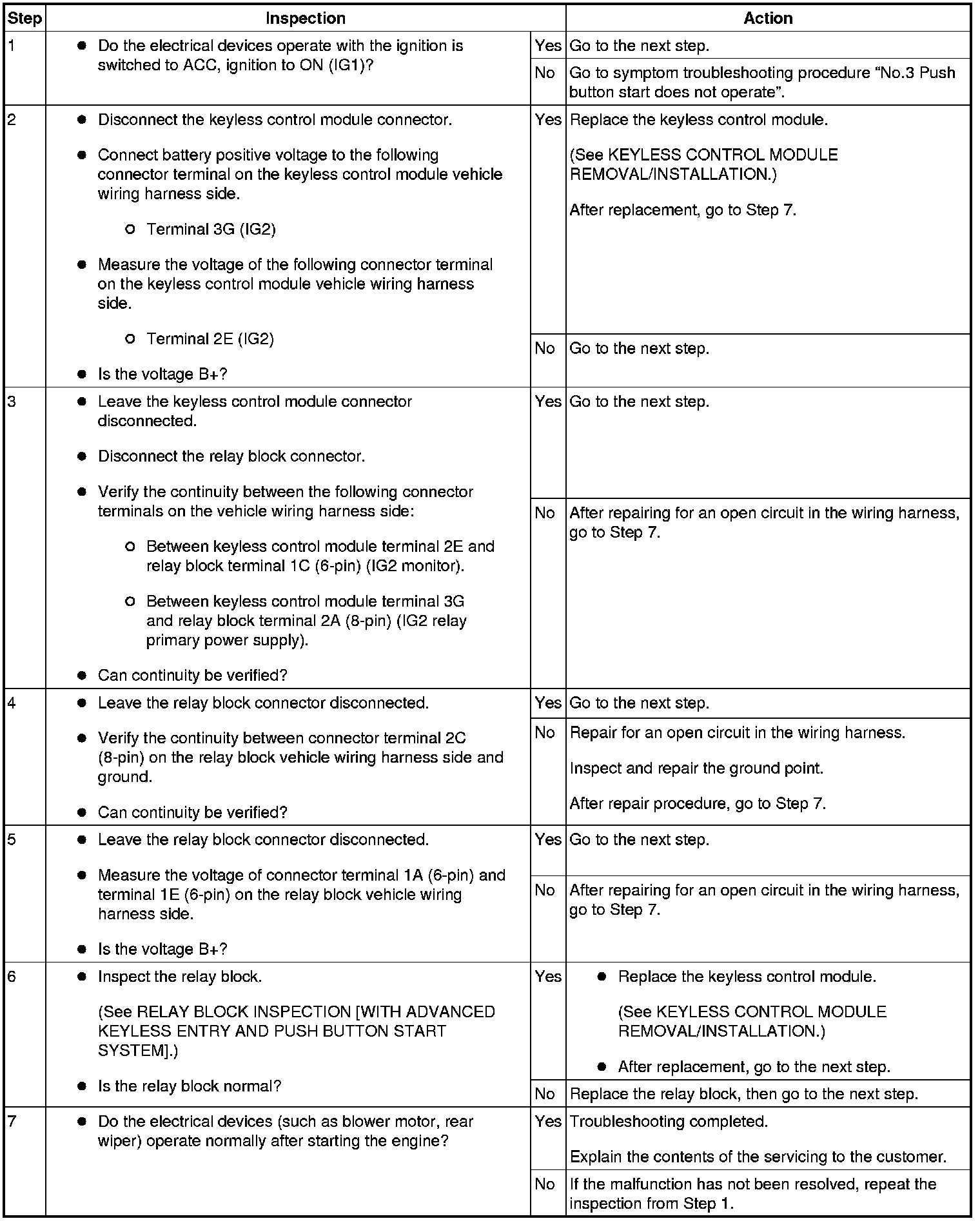

Diagnostic Procedure
