Engine Oil Control Valve: Service and Repair




OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [L3 WITH TC]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the charge air cooler. Service and Repair

4. Remove the ignition coils. Service and Repair

5. Disconnect the ventilation hose from the cylinder head cover. Service and Repair

6. Remove the cylinder head cover. Service and Repair

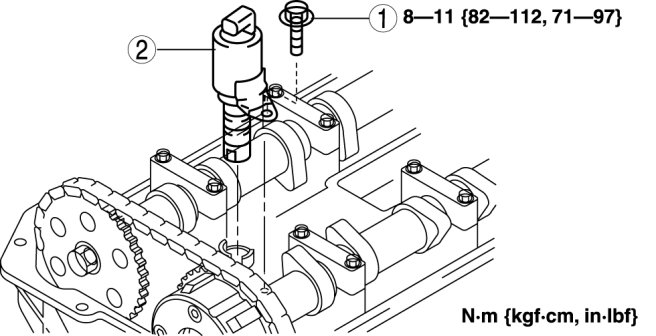

7. Remove in the order indicated in the table.

8. Install in the reverse order of removal.
