Piston Assembly Note

Piston Assembly Note





1. Position the end gap of each ring so they are not aligned as shown in the figure.

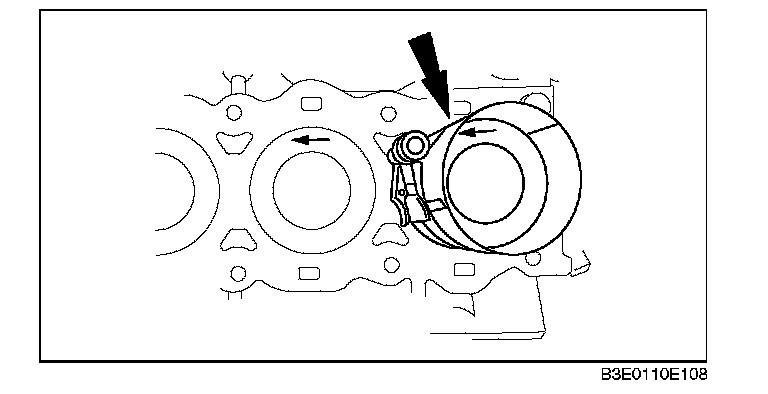

2. Insert the piston into the cylinder with the arrow on top of the piston facing the front of the engine.
