Blower Motor Switch: Testing and Inspection

FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Shift lever knob (MTX) Manual Transaxle Shift Mechanism Removal/Installation

c. Selector lever knob (ATX) Service and Repair

d. Shift panel Shift Panel Removal/Installation

e. Front scuff plate Front Scuff Plate Removal/Installation

f. Front side trim Front Side Trim Removal/Installation

g. Dashboard under cover Dashboard Under Cover Removal/Installation

h. Side wall Side Wall Removal/Installation

i. Console Console Removal/Installation

j. Glove compartment Service and Repair

k. Hood release lever Service and Repair

l. Lower panel Lower Panel Removal/Installation

m. Center panel Center Panel Removal/Installation

n. Audio unit Audio Unit Removal/Installation

o. Climate control unit. Manual Air Conditioner

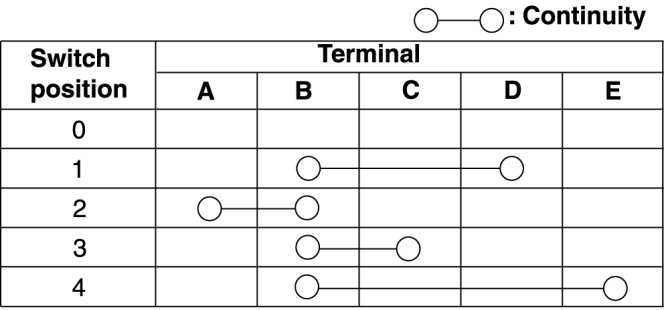

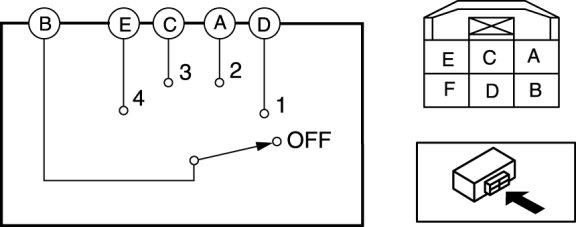

3. Verify that the continuity between the fan switch terminals as indicated in the table.

- If there is any malfunction, replace the fan switch.
