Power Transistor HVAC: Service and Repair

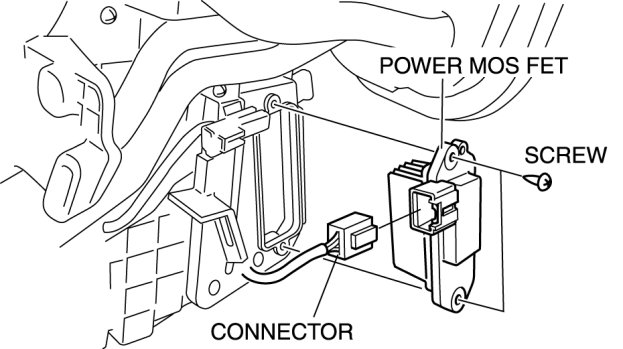

POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] 1.
Disconnect the negative battery cable.
2.
Remove the dashboard under cover
Dashboard Under Cover Removal/Installation 3.
Disconnect the connector.
4.
Remove the screw.
5.
Remove the power MOS FET.
6.
Install in the reverse order of removal.
