Headlamp Alignment Sensor: Service and Repair




AUTO LEVELING SENSOR REMOVAL/INSTALLATION

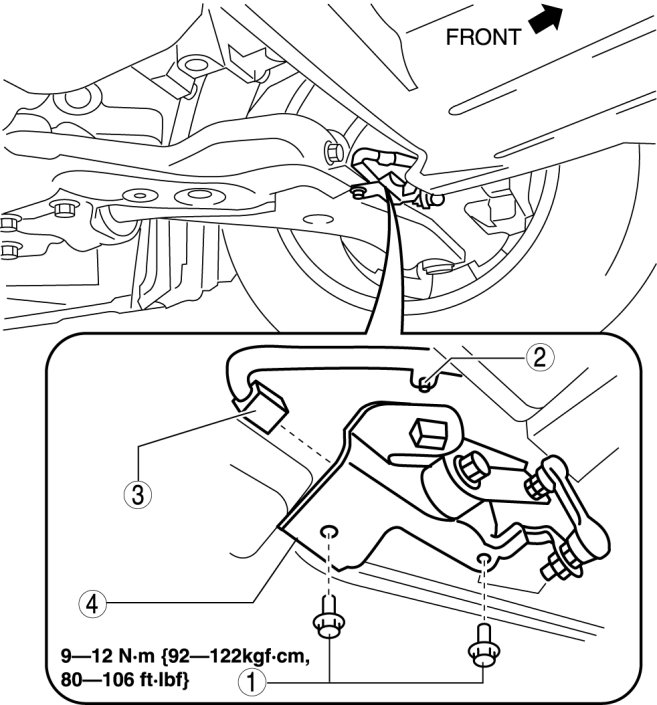

Front

1. Disconnect the negative battery cable.

2. Lift up the vehicle.

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

5. Perform the auto leveling system initialization. Programming and Relearning

Rear

1. Disconnect the negative battery cable.

2. Lift up the vehicle.

3. Disconnect the Charcoal canister connector. Service and Repair

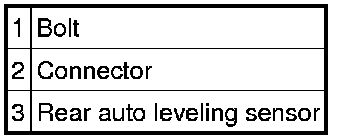

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

6. Perform the auto leveling system initialization. Programming and Relearning
