Drive Belt: Service and Repair

DRIVE BELT REMOVAL/INSTALLATION [L3 WITH TC]

1. Remove the aerodynamic under cover No.2 and splash shield as a single unit. Aerodynamic Under Cover No.2 Removal/Installation Splash Shield Removal/Installation

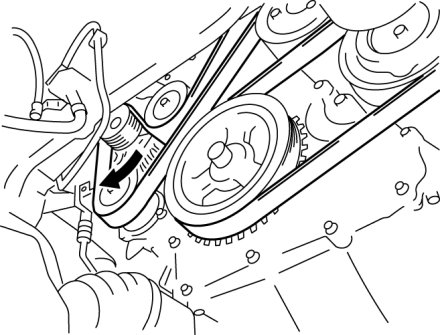

2. Rotate the drive belt auto tensioner in the direction shown in the figure and remove the drive belt.

3. Install the drive belt.

4. Verify that the drive belt auto tensioner indicator mark does not exceed the limit. Testing and Inspection

5. Install the aerodynamic under cover No.2 and splash shield as a single unit. Aerodynamic Under Cover No.2 Removal/Installation Splash Shield Removal/Installation
