Power Steering Fluid: Testing and Inspection

POWER STEERING FLUID INSPECTION

Fluid Level Inspection

1. Verify that the fluid level is between MAX and MIN of the sub tank when the engine is cold.

- If the fluid is not at the specified level, adjust the fluid level (MIN-MAX on sub tank) by adding/draining the fluid.

Power steering fluid type
- ATF M-III, M-V or equivalent (e.g. Dexron (R) II)

Power steering fluid capacity (approx. quantity)
- 1.0 L {1.1 US qt, 0.88 lmp qt}

Fluid Leakage Inspection

1. Start the engine and idle it.

2. Turn the steering wheel fully to left or right, to generate the fluid pressure.

CAUTION:
- Do not maintain the steering wheel fully turned for 5 s or more. It is possible that oil temperature can rise and this will negatively affect the oil pump.

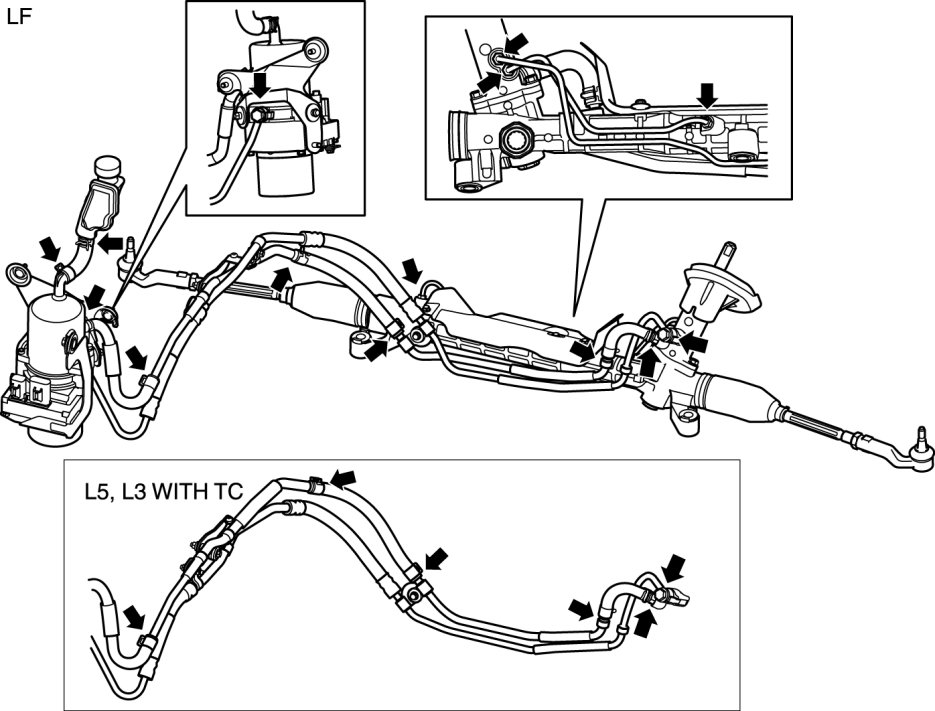

3. Inspect for the fluid leakage at the points indicated in the figure.






- If fluid leakage is found, repair or replace the related parts. Service and Repair
