Intake Air Temperature (IAT) Sensor Inspection

INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [L3 WITH TC]

Resistance Inspection

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Disconnect the MAF/IAT sensor.

4. Measure the resistance between the MAF/IAT sensor terminals D and E using a tester.

- If not as specified, replace the MAF/IAT sensor. (See Service and Repair.)

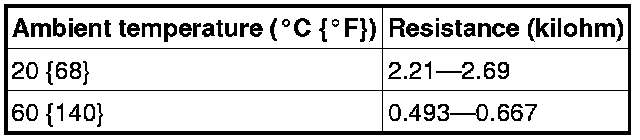

Specification
