Boost Air Temperature Sensor Inspection

BOOST AIR TEMPERATURE SENSOR INSPECTION [L3 WITH TC]

Resistance Inspection

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Disconnect MAP/boost air temperature sensor.

4. Measure the resistance between the MAP/boost air temperature sensor terminals A and B using a tester.

- If not as specified, replace the MAP/boost air temperature sensor. Service and Repair

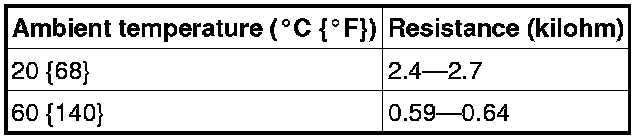

Specification
