Neutral Safety Switch: Testing and Inspection
NEUTRAL SWITCH INSPECTION [L3 WITH TC] 1.
Remove the battery cover.
Removal and Replacement 2.
Disconnect the negative battery cable.
3.
Remove the neutral switch.
Service and Repair 4.

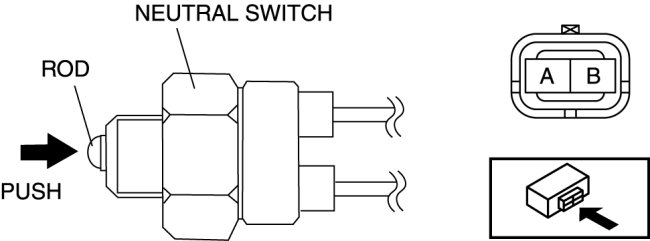

Inspect for continuity between the neutral switch terminals using an ohmmeter.
-
If not as specified, replace the neutral switch.

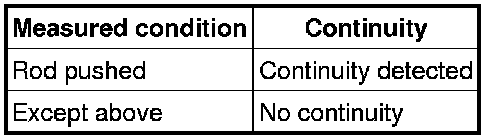

Service and RepairSpecification
