Rear Wheel Alignment

REAR WHEEL ALIGNMENT

Rear wheel alignment (Unloaded)*1 [LF, L5]

*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.
Rear wheel alignment (Unloaded)*1 [L3 WITH TC]

*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.

Total Toe-in Adjustment

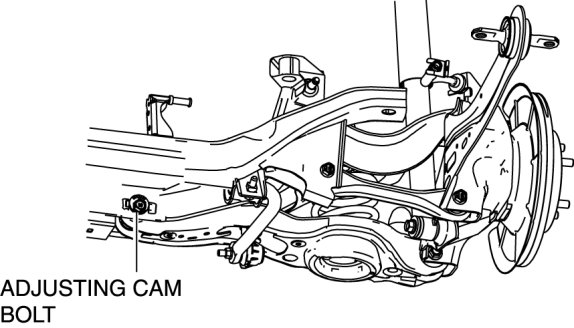

1. Loosen the installation nut of the adjusting cam bolt.

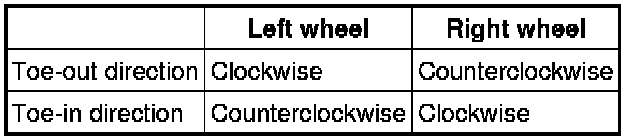

2. Rotate the adjusting cam bolt in either direction to adjust the toe-in.

3. Tighten the nut.

Tightening torque
- 80-100 Nm {8.2-10 kgf-m, 60-73 ft-lbf}
