Gear Sensor/Switch: Service and Repair

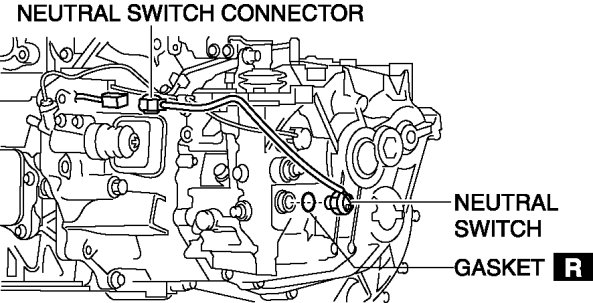

NEUTRAL SWITCH REMOVAL/INSTALLATION [A26M-R]

1. Disconnect the negative battery cable.

2. Disconnect the neutral switch connector.

3. Remove the aerodynamic under cover No.2. Aerodynamic Under Cover No.2 Removal/Installation

4. Remove the neutral switch with the gasket.






5. Install a new gasket and the neutral switch to the transaxle case.

Tightening torque
- 29-39 Nm {3.0-3.9 kgf-m, 22-28 ft-lbf}

6. Install the aerodynamic under cover No.2. Aerodynamic Under Cover No.2 Removal/Installation

7. Connect the neutral switch connector.

8. Connect the negative battery cable.
