Windshield Washer Motor: Service and Repair




WASHER MOTOR REMOVAL/INSTALLATION

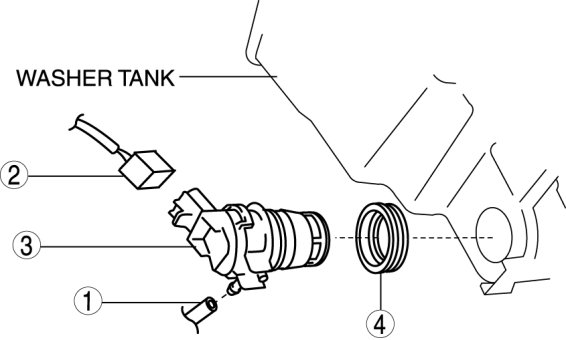

Vehicles Without Rear Washer System

1. Disconnect the negative battery cable.

2. Remove the front mudguard (RH). Service and Repair

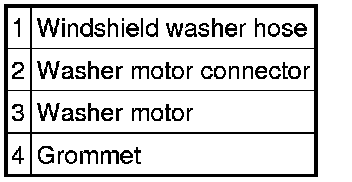

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

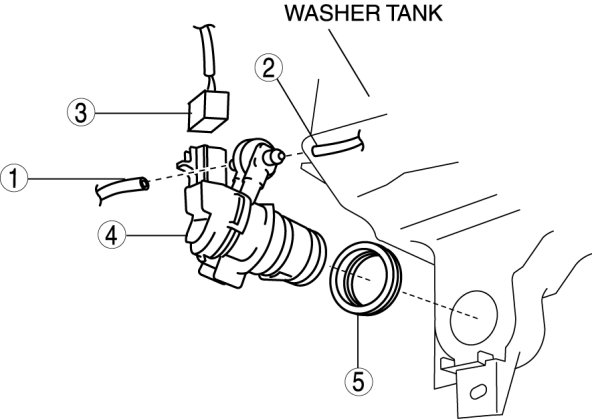

Vehicles With Rear Washer System

1. Disconnect the negative battery cable.

2. Remove the front mudguard (RH). Service and Repair

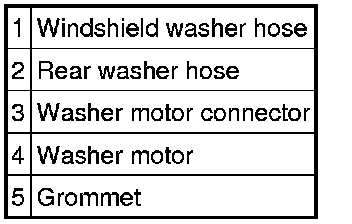

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
