Overhaul

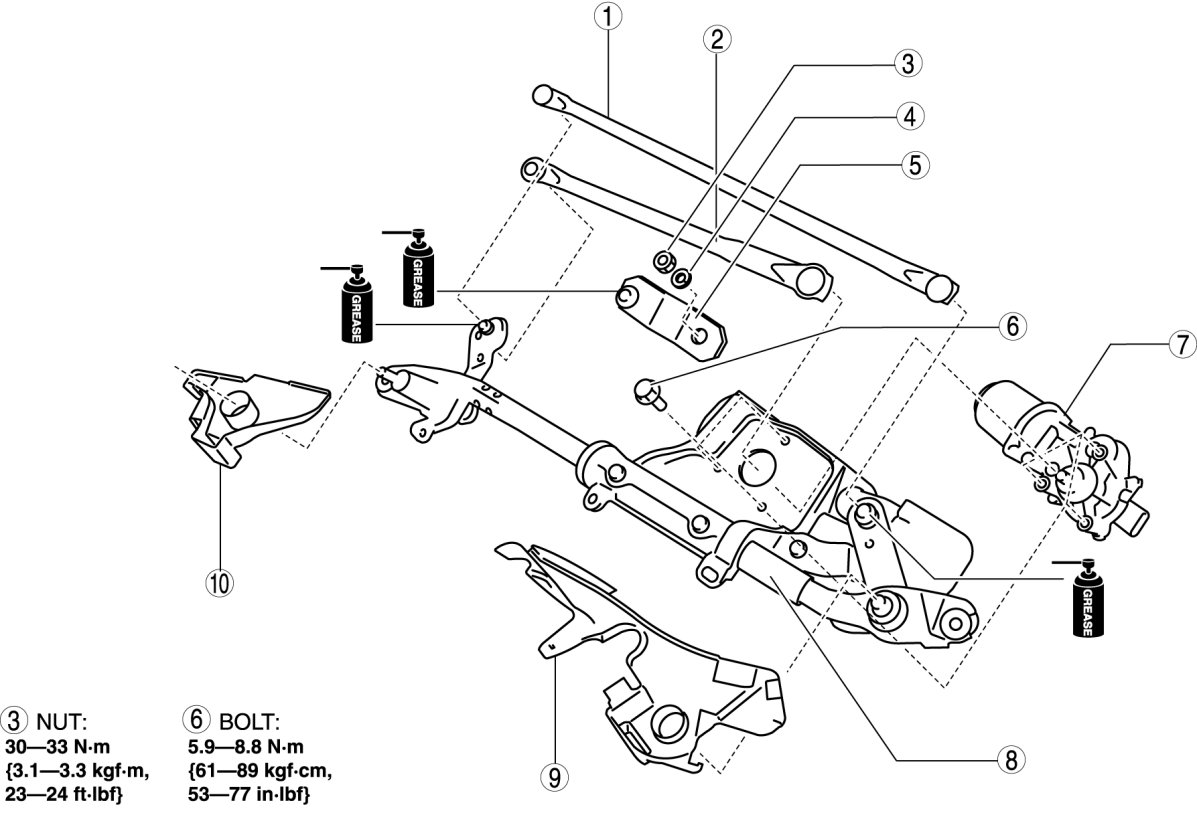

WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.










Windshield Wiper Motor Assembly Note

1. Connect the windshield wiper motor to the vehicle wiring harness connector, operate the windshield wipers, and then stop them at the auto-stop position.

2. Disconnect the windshield wiper motor connector.

3. Install the windshield wiper motor to the main link and tighten the bolt.

4. Assemble the crank arm such that the crank arm and main link markings are aligned as shown in the figure.






5. Install the washer and nut.

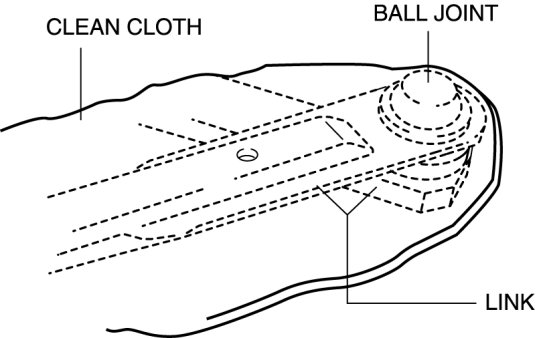

Ball Joint Assembly Note

1. Use a clean cloth to protect the link, and squeeze using pliers.
