Trunk / Liftgate Latch: Service and Repair

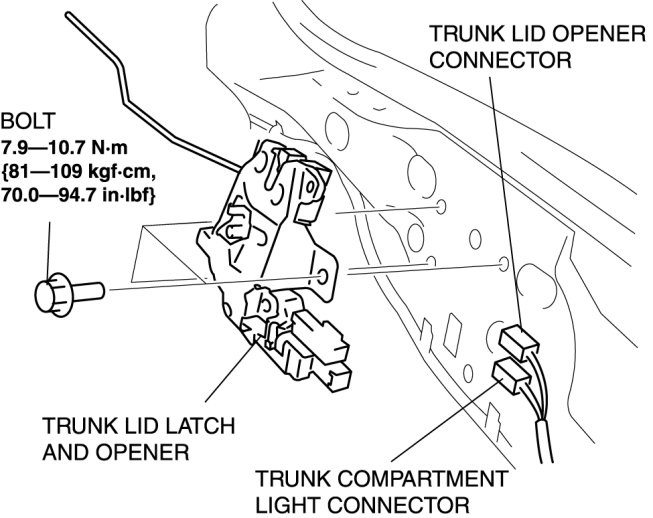

TRUNK LID LATCH AND OPENER REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the trunk end trim.
Trunk End Trim Removal/Installation 3.
Detach the rod.
4.
Disconnect the trunk lid opener connector and the trunk compartment light connector.
5.
Remove the bolts, then remove the trunk lid latch and opener.
6.
Install in the reverse order of removal.
