Front Fender Liner: Service and Repair
FRONT MUDGUARD REMOVAL/INSTALLATION 1.

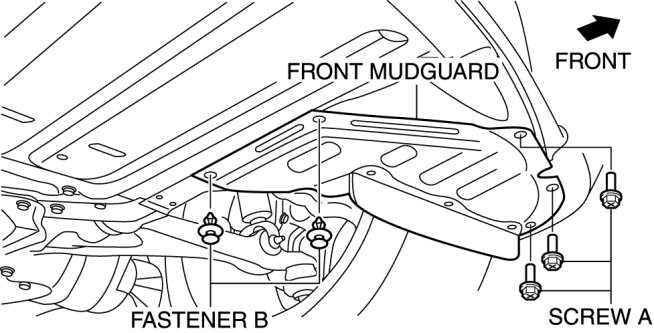

Remove the screws A and fasteners B.
2.

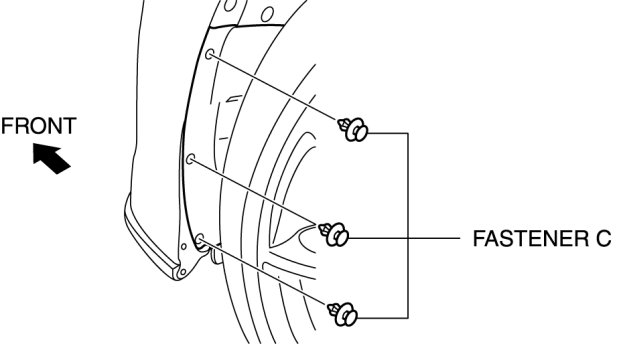

Remove fasteners C.
3.

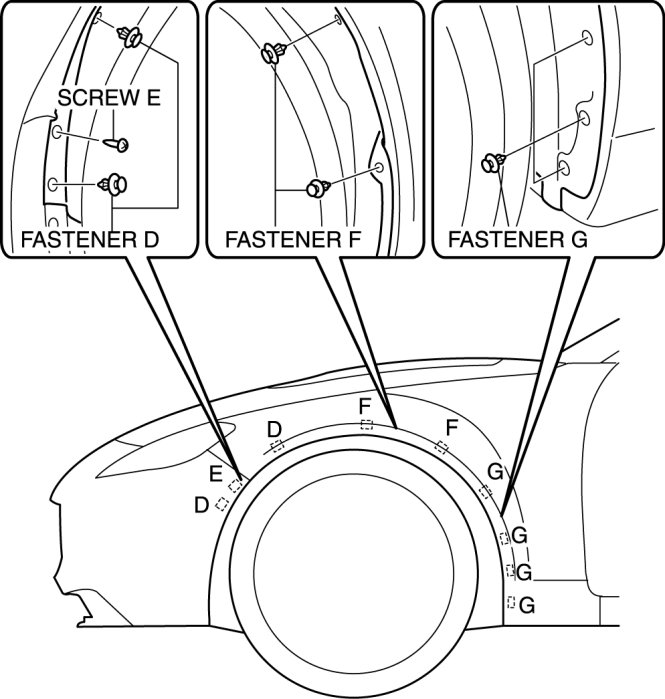

Remove fasteners D, F, G and screw E.
4.

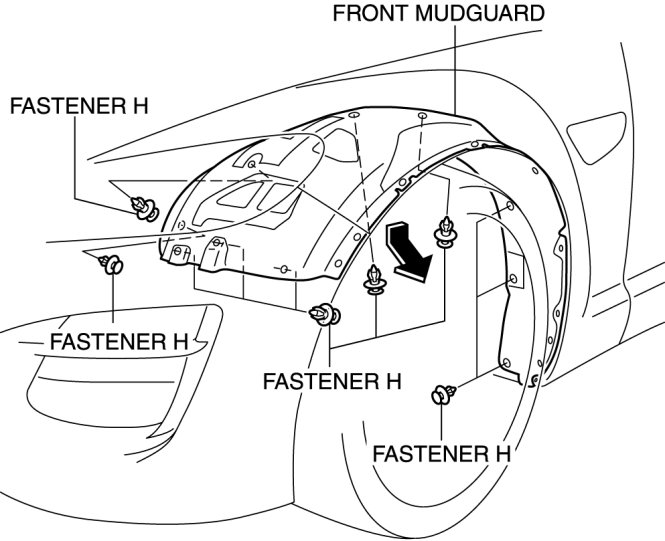

Remove the fasteners H to uninstall the front mud guard in the direction of the arrow.
5.
Install in the reverse order of removal.
