Door Lock Cylinder: Service and Repair




FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

1. Remove the following parts:
a. Inner garnish Inner Garnish Removal/Installation

b. Front door trim Front Door Trim Removal/Installation

c. Front door glass Service and Repair

d. Front door speaker Front Door Speaker Removal/Installation

e. Front door unit Front Door Unit Removal/Installation

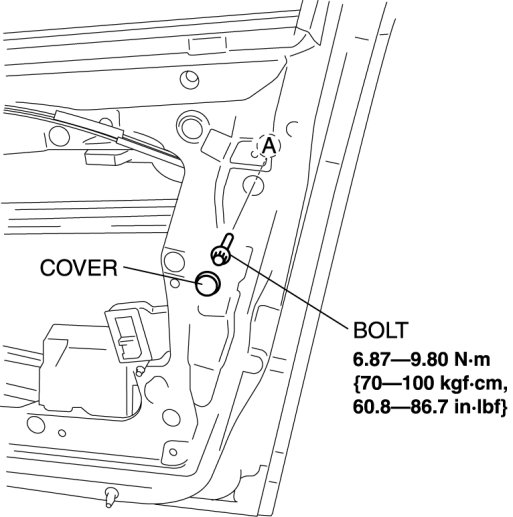

2. Remove the cover, then remove the bolt.

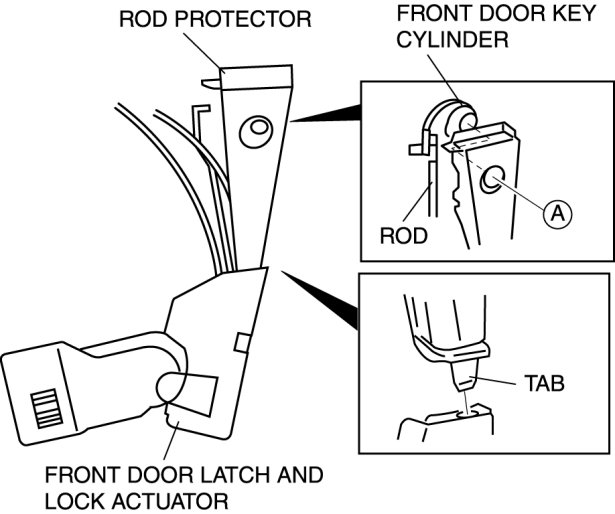

3. Pull out the protector tab from the latch and remove the protector.






4. Detach the front door key cylinder rod.

5. Remove the front outer handle. Service and Repair

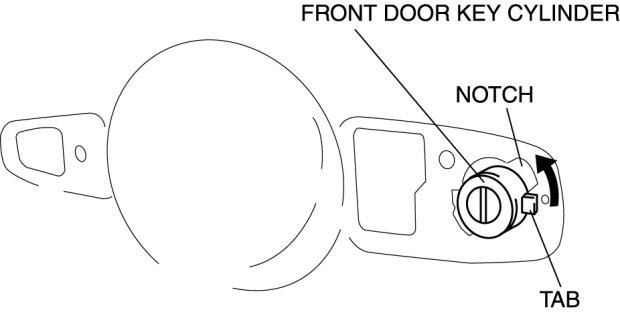

6. Turn the front door key cylinder so that the tab is aligned with the notch.






7. Remove the front door key cylinder by pulling it out from the front door.

8. Install in the reverse order of removal.
