Crossmember No. 1

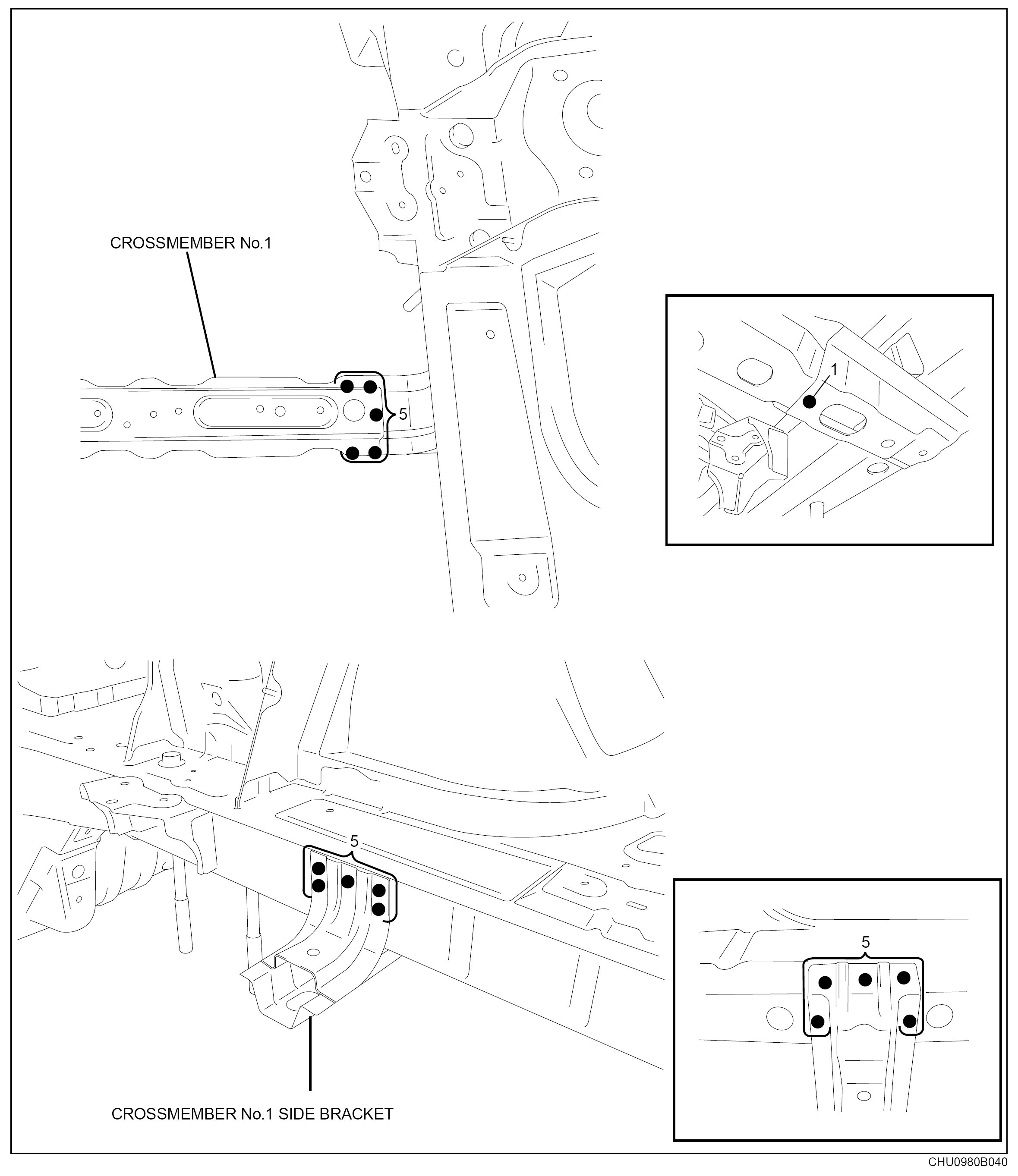

CROSSMEMBER NO.1 REMOVAL 1.
Remove the crossmember No.1.
2.
Remove the crossmember No.1 side bracket.

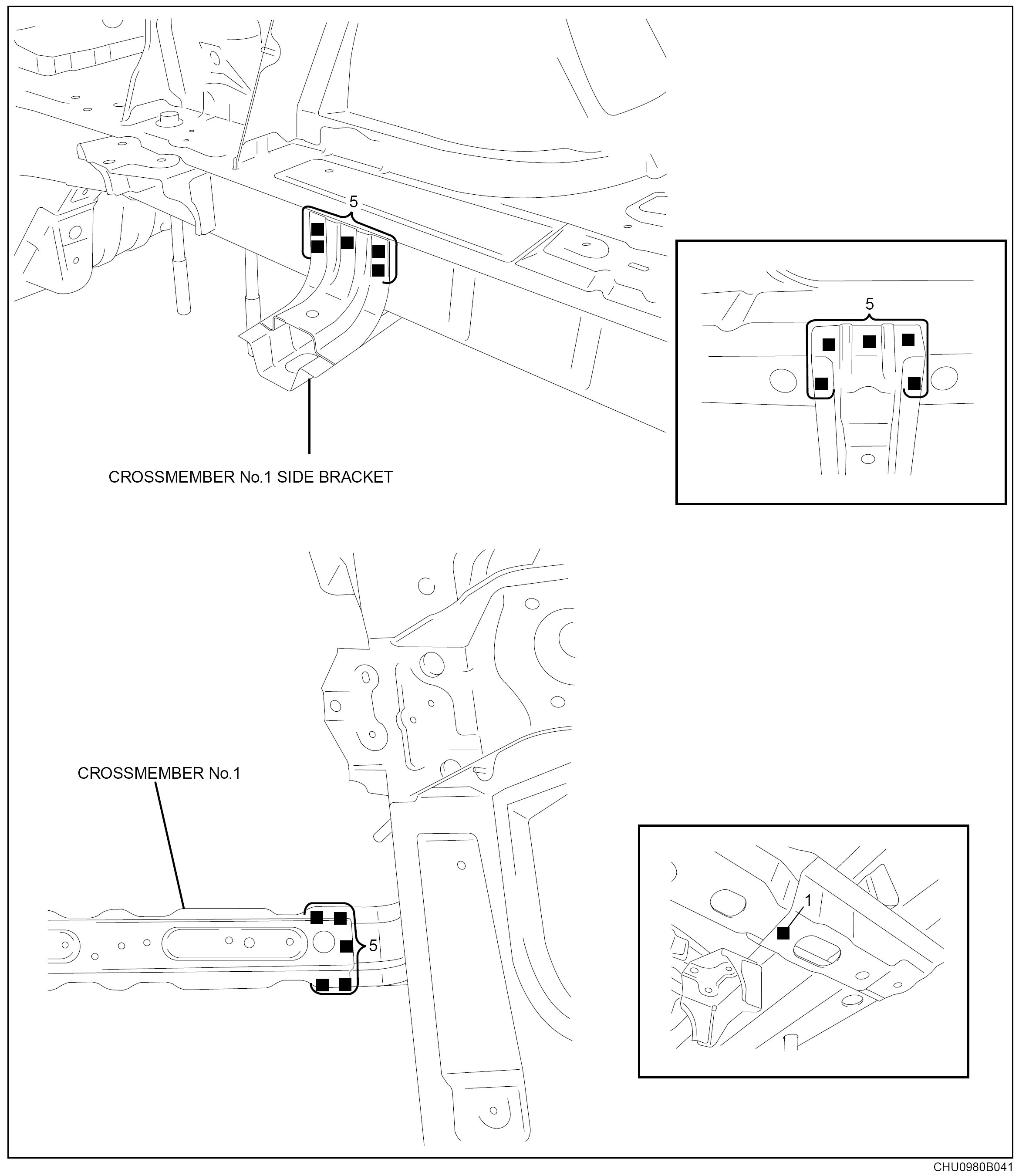

CROSSMEMBER NO.1 INSTALLATION 1.
When installing new parts, position each part so that the section measurement aligns with the body dimension.
2.
Drill holes for plug welds before installing new parts.
3.
After temporarily installing new parts, make sure the related parts fit properly.
