Power Seat Switch: Service and Repair

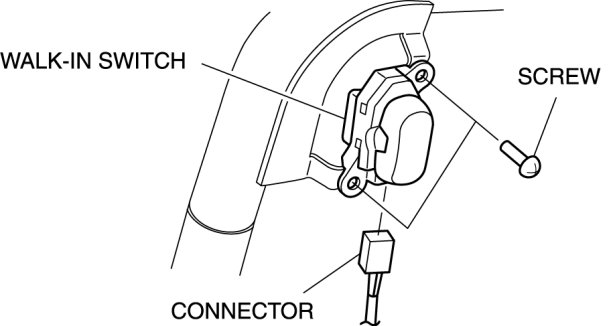

WALK-IN SWITCH REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable
.
2.
Remove the front seat.
Front Seat Removal/Installation 3.
Remove the front seat back trim.
Front Seat Back Trim Removal/Installation 4.
Remove the connector.
5.
Remove the screw.
6.
Remove the walk-in switch.
7.
Install in the reverse order of removal.
