Walk-In Switch Inspection




WALK-IN SWITCH INSPECTION

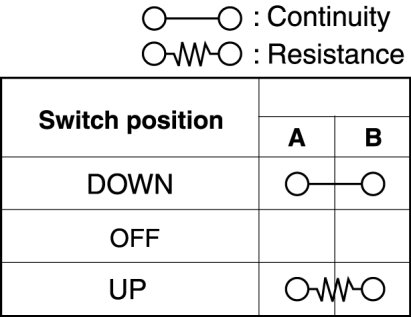

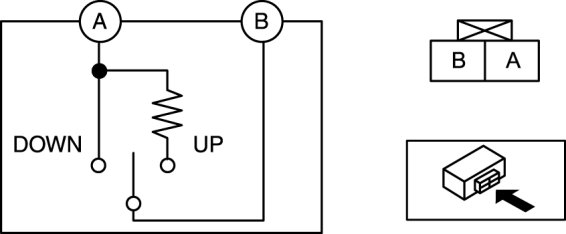

1. Connect battery positive voltage to recliner motor terminal A or B, then verify that the walk-in switch operate as shown in the table.






- If the walk in switch does not operate as indicated in the table, replace the recliner motor.
