Antilock Brake System (ABS)

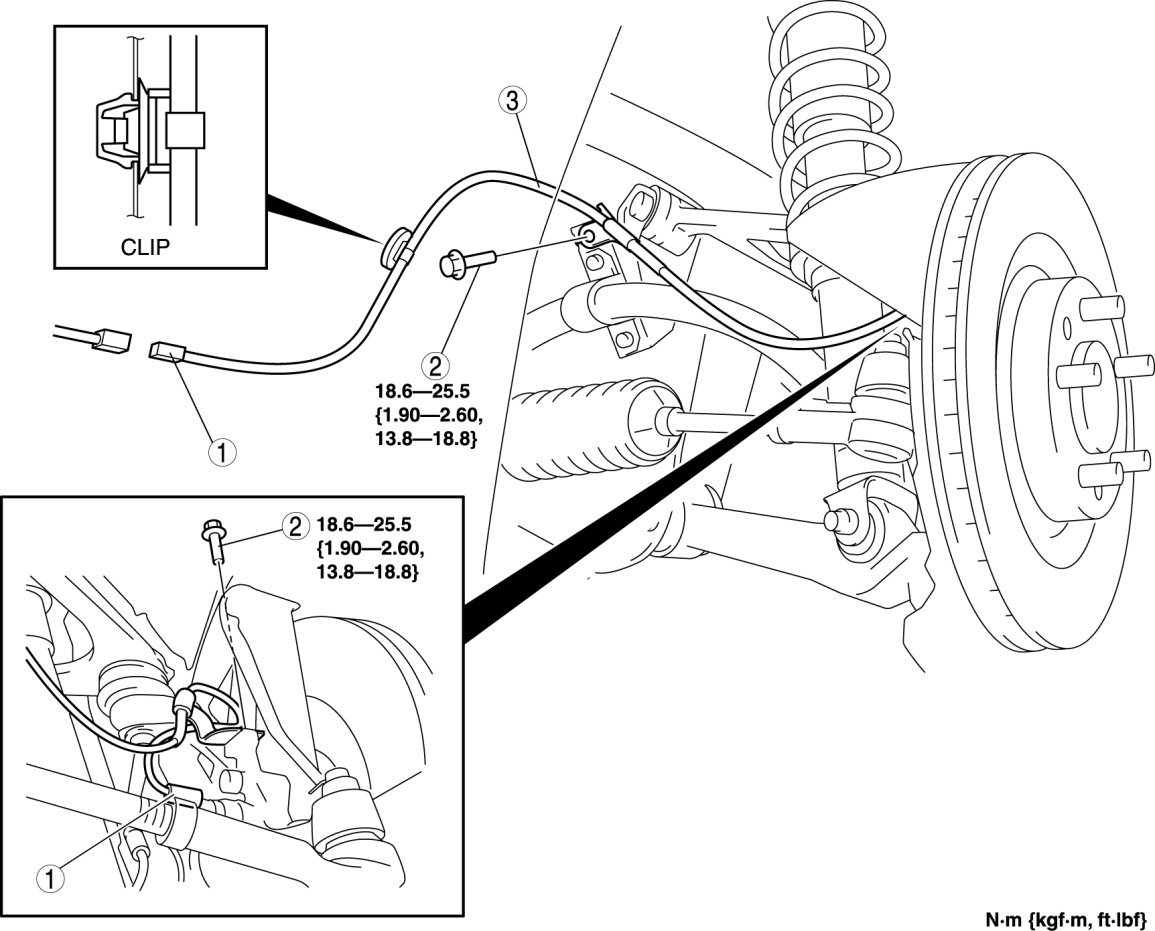

FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATIONNOTE: -
If there is any malfunction in the front ABS wheel-speed sensor unit, replace the wheel hub component.
Service and Repair 1.
Slightly bend back the front mudguard.
Service and Repair 2.
Remove in the order indicated in the table.
3.
Install in the reverse order of removal.
