Air Duct: Service and Repair

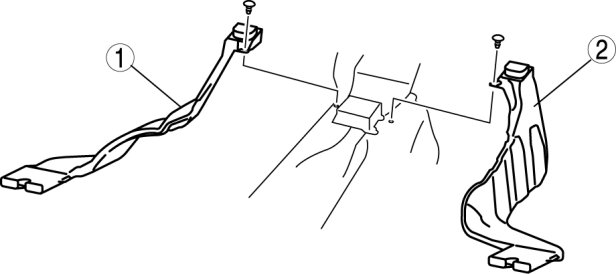

REAR HEAT DUCT REMOVAL/INSTALLATION

1. Remove the following parts:
a. Front seat Front Seat Removal/Installation

b. Rear seat Rear Seat Removal/Installation

c. Inner scuff plate Inner Scuff Plate Removal/Installation

d. Ashtray illumination bulb Service and Repair

e. Console Removal and Replacement

f. Front side trim Front Side Trim Removal/Installation

g. Tire house trim Tire House Trim Removal/Installation

h. Seat belt rail Front Seat Belt Removal/Installation

i. Floor covering Floor Covering Removal/Installation

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.
