Manual Air Conditioner
CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] 1.
Disconnect the negative battery cable.
2.
Remove the lower panel.
Lower Panel Removal/Installation 3.
Remove the console.
Removal and Replacement 4.
Remove the center panel unit.
Center Panel Unit Removal/Installation 5.

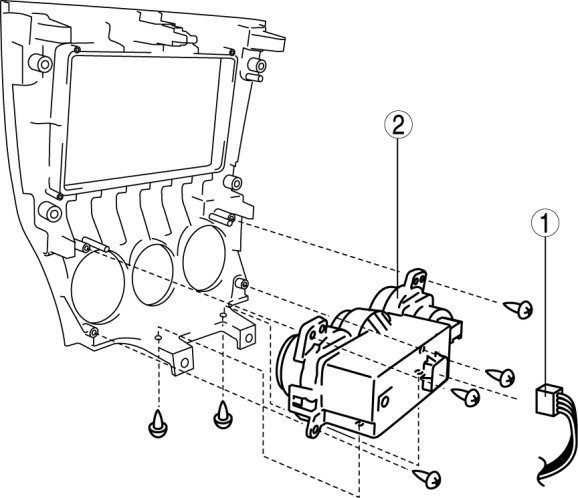

Remove in the order indicated in the table.
6.
Install in the reverse order of removal.
