Brake Lamp: Service and Repair

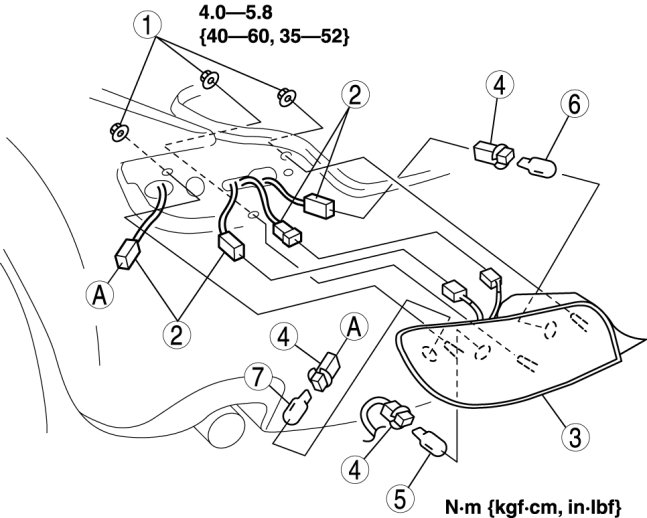

REAR COMBINATION LIGHT REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the trunk end trim.
Trunk End Trim Removal/Installation 3.
Remove the trunk side trim.
4.
Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
