Turn Signal Switch: Testing and Inspection




LIGHT SWITCH INSPECTION

Vehicle Without Auto Light System

1. Remove the column cover. Service and Repair

2. Remove the ignition key illumination. Service and Repair

3. Remove the light switch. Service and Repair

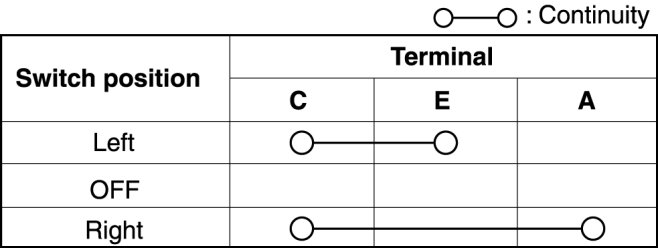

4. Verify that the continuity between the light switch terminals is as indicated in the table.

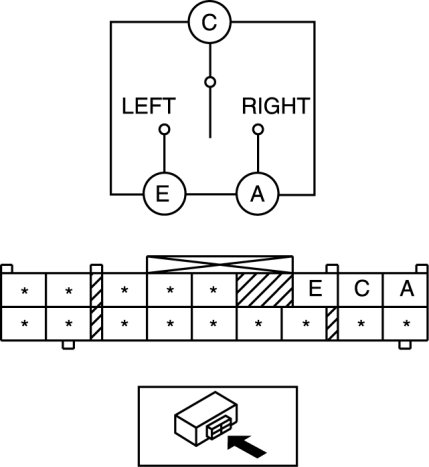

Turn switch











Vehicle With Auto Light System

1. Remove the column cover. Service and Repair

2. Remove the ignition key illumination. Service and Repair

3. Remove the light switch. Service and Repair

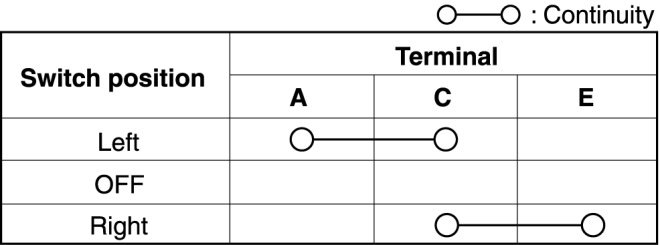

4. Verify that the continuity between the light switch terminals is as indicated in the table.

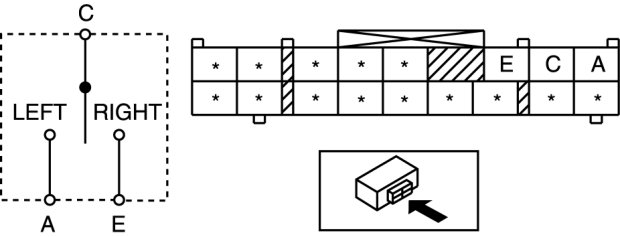

Turn switch
