Crankshaft Position Timing Ring: Service and Repair

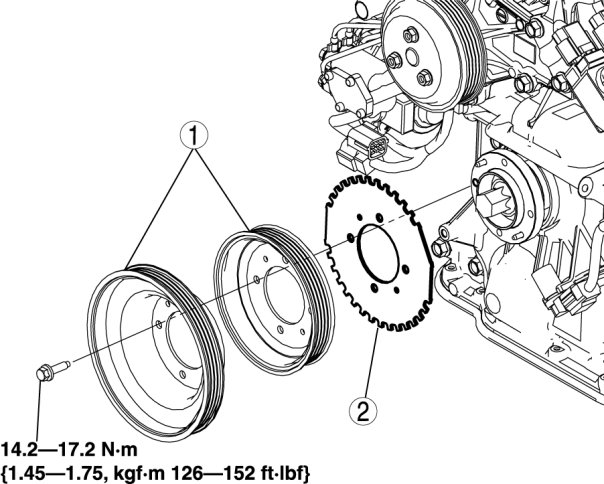

ECCENTRIC SHAFT POSITION PLATE REMOVAL/INSTALLATION [13B-MSP] 1.
Remove the battery cover. (See
Removal and Replacement)
2.
Disconnect the negative battery cable.
3.
Remove the drive belt referring to the drive belt replacement.
Service and Repair 4.
Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
