Air Fuel Ratio (A/F) Sensor Removal/Installation




AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [13B-MSP]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the front suspension tower bar. (MT) (See Front Suspension Tower Bar Removal/Installation - MT)

4. Remove the bracket as shown in the figure.






5. Remove the extension manifold (upper). (See Intake-Air System Removal/Installation)

6. Disconnect the A/F sensor connector.

7. Remove the catalytic converter installation nuts, then move the catalytic converter out of the way. (See Service and Repair)

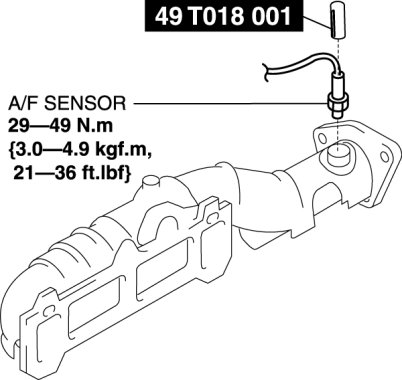

8. Remove the A/F sensor using the SST.






9. Install in the reverse order of removal.
