Harmonic Balancer - Crankshaft Pulley

Pulley Lockbolt Installation Note

1. Temporarily tighten the pulley lockbolt.
NOTE:
- Press in the pulley component by temporarily tightening the pulley lock bolt, and press the part on the eccentric shaft to the normal position.

2. Remove the pulley lockbolt.

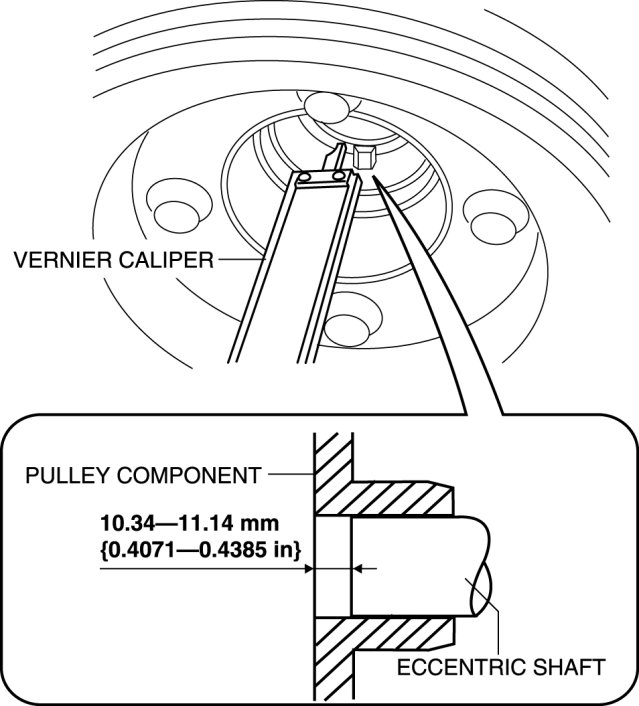

3. Measure the position shown in the figure.

- If not within the specification, perform overhaul servicing.





Standard
- 10.34-11.14 mm {0.4071-0.4385 in}

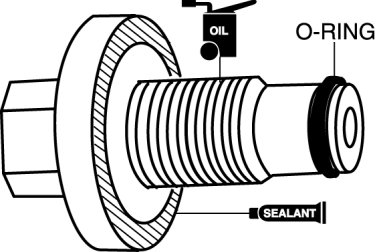

4. Apply engine oil to the pulley lockbolt threads.






5. Assemble a new O-ring.

6. Apply silicone sealant to the seating face.

7. Tighten the pulley lockbolt.

Tightening torque
- 254-294 Nm {25.9-29.9 kgf-m, 188-216 ft-lbf}
Tighten the bolts in the order shown in the figure






Retighten the No.1 bolt after tighten the all bolts.

Tightening torque 18.6-25.5 Nm {1.9-2.6 kgf-m, 14-18 ft-lbf}
