Neutral Safety Switch: Service and Repair
NEUTRAL SWITCH REMOVAL/INSTALLATION [P66M-D] 1.
Remove the transmission.
Transmission Removal/Installation 2.

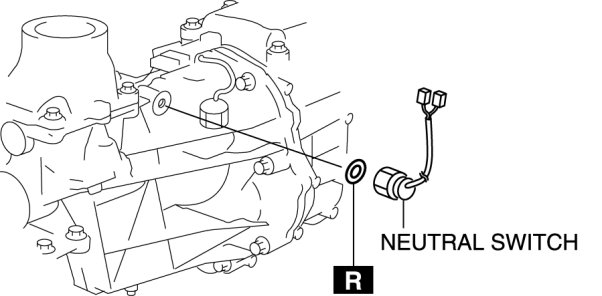

Remove the neutral switch with the packing.
3.
Install the neutral switch and a new packing to the transmission case.
Tightening torque -
23.6-35.3 Nm {2.5-3.5 kgf-m, 18-26 ft-lbf}
4.
Install the transmission.
Transmission Removal/Installation
