Steering Column Lock: Testing and Inspection




STEERING LOCK UNIT INSPECTION [WITH ADVANCED KEYLESS ENTRY AND START SYSTEM]

1. Remove the column cover. Service and Repair

2. Measure the voltage at each terminal.

- If the voltage is not as specified in the terminal voltage table (Reference), inspect the parts under "Inspection item(s)".

- If there is any malfunction, inspect the parts under "Inspection item(s)".

- If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the steering lock unit.

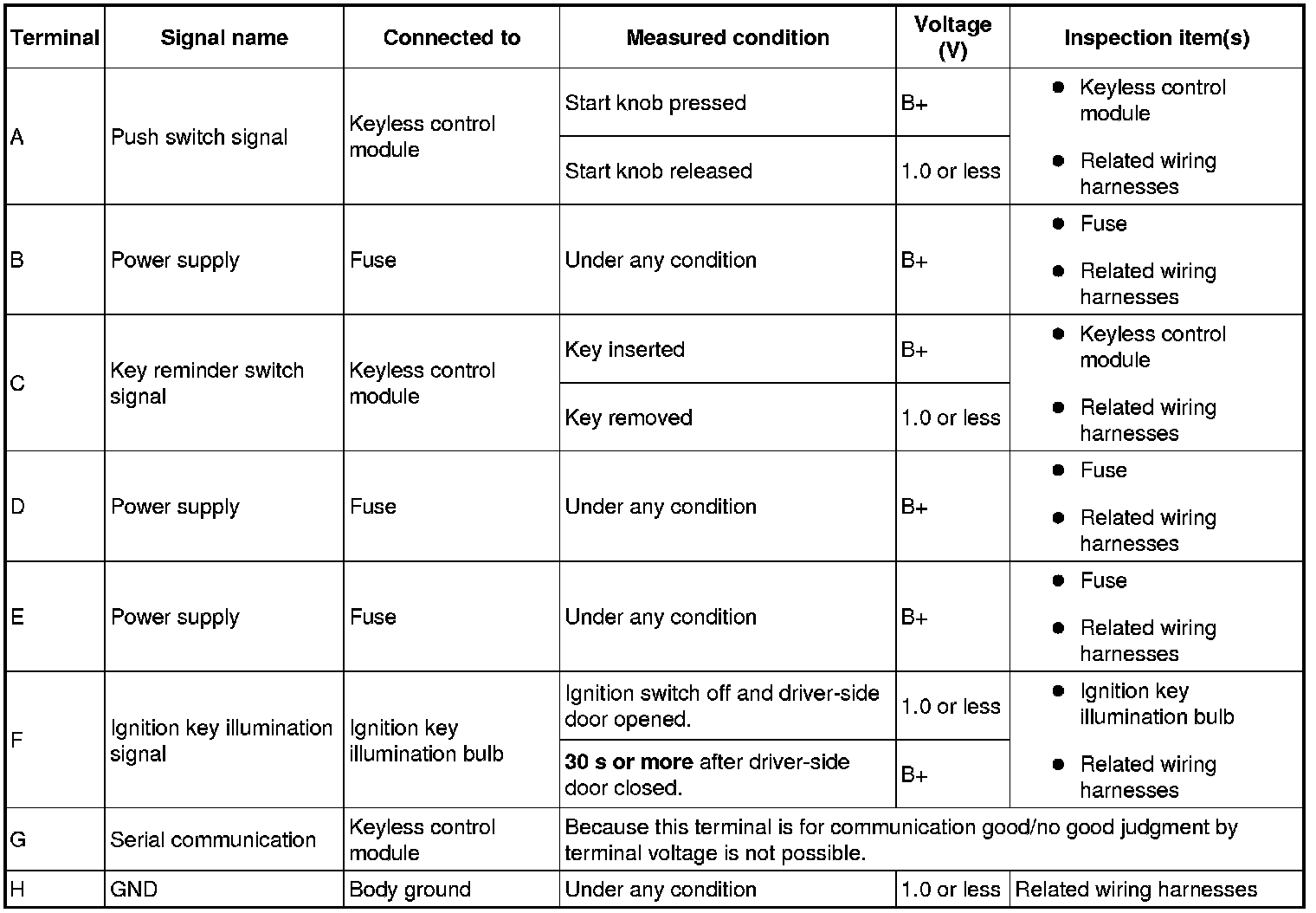

Terminal Voltage Table (Reference)
