Flywheel: Testing and Inspection

FLYWHEEL INSPECTION

1. Remove the flywheel. Removal and Replacement

2. Inspect the surface that contacts the clutch disc for scratches, nicks, and discoloration.
NOTE:

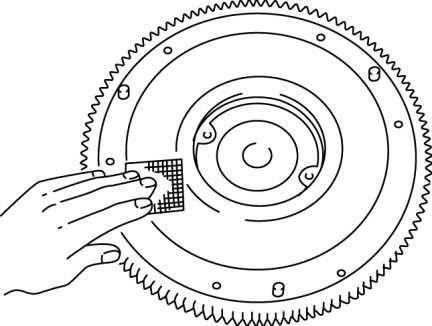

1 Correct slight scratches and discoloration using sandpaper.





2 Inspect the runout of the surface that contacts the clutch disc with the flywheel installed to the eccentric shaft.

3. Inspect the ring gear teeth for damage and wear.

4. Install the flywheel.

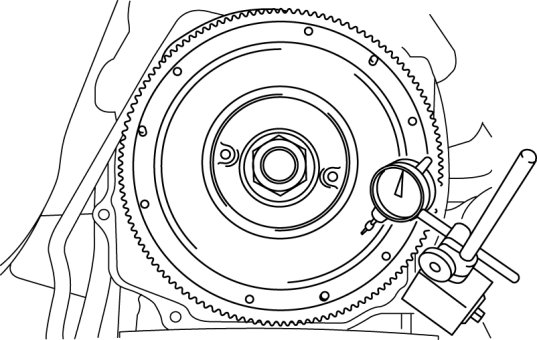

5. Measure the runout of the surface that contacts the clutch disc using a dial gauge.






- If it exceeds the maximum specification, replace the flywheel.

Flywheel maximum runout
- 0.2 mm {0.008 in}
