Transmission Oil Replacement

TRANSMISSION OIL REPLACEMENT [P66M-D]

1. Position the vehicle on level ground.

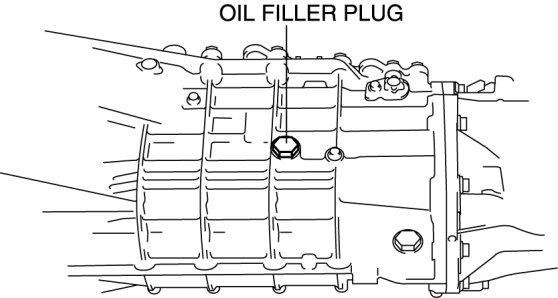

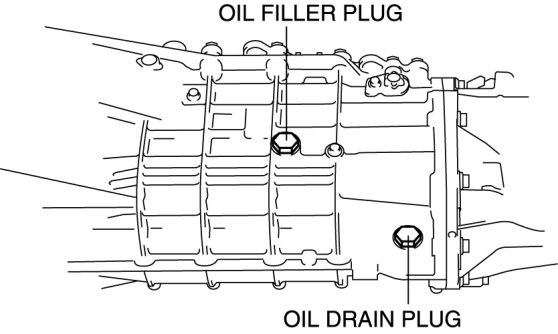

2. Remove the oil filler plug with the washer and drain plug with the washer, and then drain the oil.






3. Clean drain plug.

4. Install drain plug and a new washer.

Tightening torque
- 40-59 Nm {4.1-6.0 kgf-m, 30-43 ft-lbf}

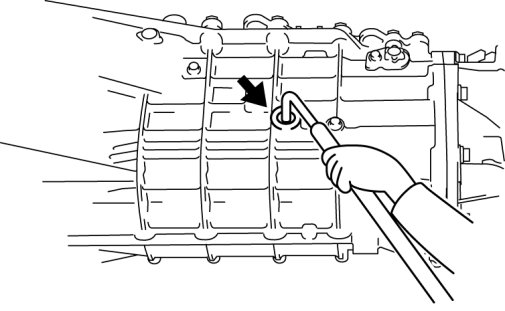

5. Add the specified amount and type of oil through the plug port for oil filler plug to near the brim of the port.






Specified manual transmission oil grade
- API Service GL-4

Specified manual transmission oil viscosity
- SAE 75W-90

Manual transmission oil capacity (approx. quantity)
- 1.95 L {2.06 US qt, 1.72 lmp qt}

6. Install the oil filler plug and a new washer.






Tightening torque
- 40-59 Nm {4.1-6.0 kgf-m, 30-43 ft-lbf}
