Headlamp Washer Motor: Testing and Inspection
HEADLIGHT CLEANER MOTOR INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the windshield washer tank.
Service and Repair 3.

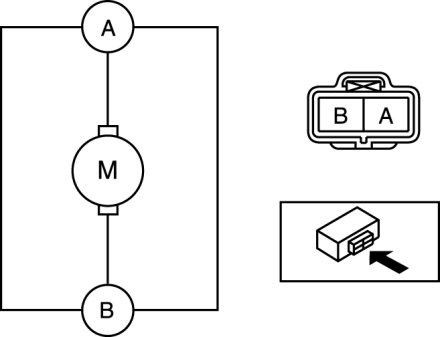

Connect battery positive voltage to headlight cleaner motor terminal A and terminal B to ground.
4.
Verify that the headlight cleaner motor operates normally.
-
If there is any malfunction, replace the headlight cleaner motor.
