Windshield Washer Hose: Service and Repair

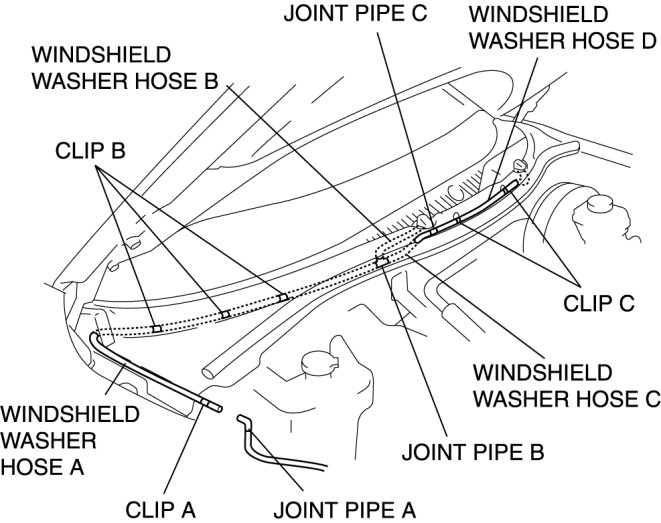

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

1. Remove the windshield wiper arm and blade. Service and Repair

2. Disconnect joint pipe A, then remove windshield washer hose A from clip A.






3. Remove the cowl grille. Service and Repair

4. Remove clips B.

5. Disconnect joint pipe B, then remove windshield washer hose A.

6. Disconnect windshield washer hose B from the washer nozzle, then remove windshield washer hose B.

7. Disconnect joint pipe C, then remove windshield washer hose C.

8. Remove windshield washer hose D from clips C.

9. Disconnect windshield washer hose D from the washer nozzle, then remove windshield washer hose D.

10. Install in the reverse order of removal.
