Windshield Washer Motor: Testing and Inspection
WINDSHIELD WASHER MOTOR INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the windshield washer tank.
Service and Repair 3.

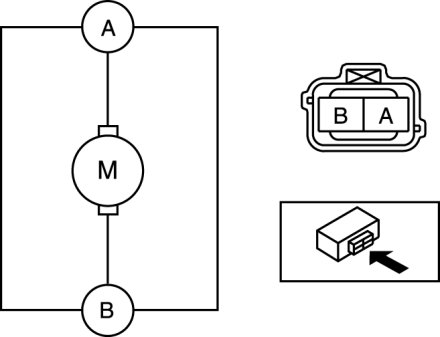

Connect battery positive voltage to
windshield washer motor terminal A and terminal B to ground.
4.
Verify that the
windshield washer motor operates normally.
-
If there is any malfunction, replace the
windshield washer motor.
