Windshield Washer Spray Nozzle: Adjustments
WINDSHIELD WASHER NOZZLE ADJUSTMENTCAUTION: -
If the nozzle is adjusted by inserting a needle or similar thin tool into the washer nozzle, it could deform or damage the injection nozzle and the washer fluid may not spray normally.
1.

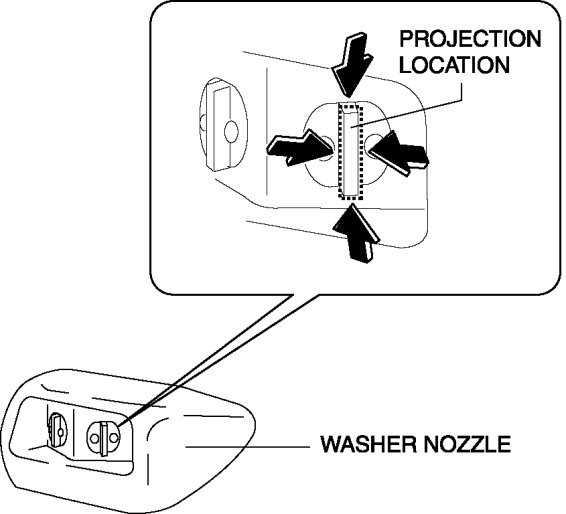

Press the washer nozzle projection in the direction of the arrow and adjust the area where the washer fluid is sprayed to within the specification.
