Pinpoint Test 13: The Smart Unlock Does Not Operate Correctly




PINPOINT TEST 13: THE SMART UNLOCK DOES NOT OPERATE CORRECTLY - HYBRID

Normal Operation

The smart junction box (SJB) automatically unlocks all the doors after the doors are locked with a door lock control switch if the key is in the ignition lock cylinder and one of the front doors is ajar.The vehicle can still be locked with the key in the ignition, by using the manual lock rod, a key in the door lock cylinder, or the lock button on an Integrated Keyhead Transmitter (IKT).

Possible Causes
- Key-in-ignition switch
- Door ajar switch input
- SJB

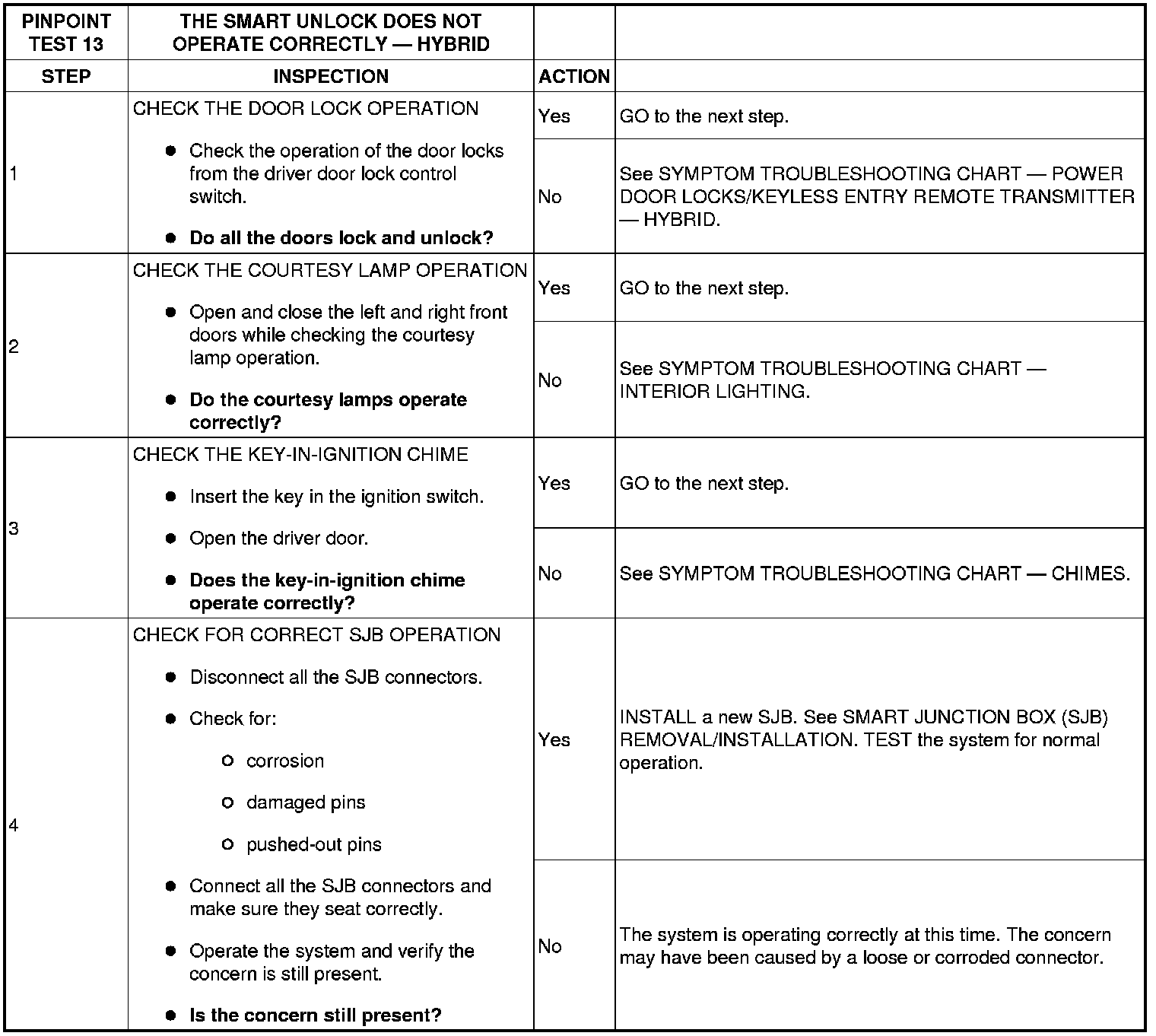

Diagnostic Procedure
