Engine Service Technical Data L5

ENGINE TECHNICAL DATA

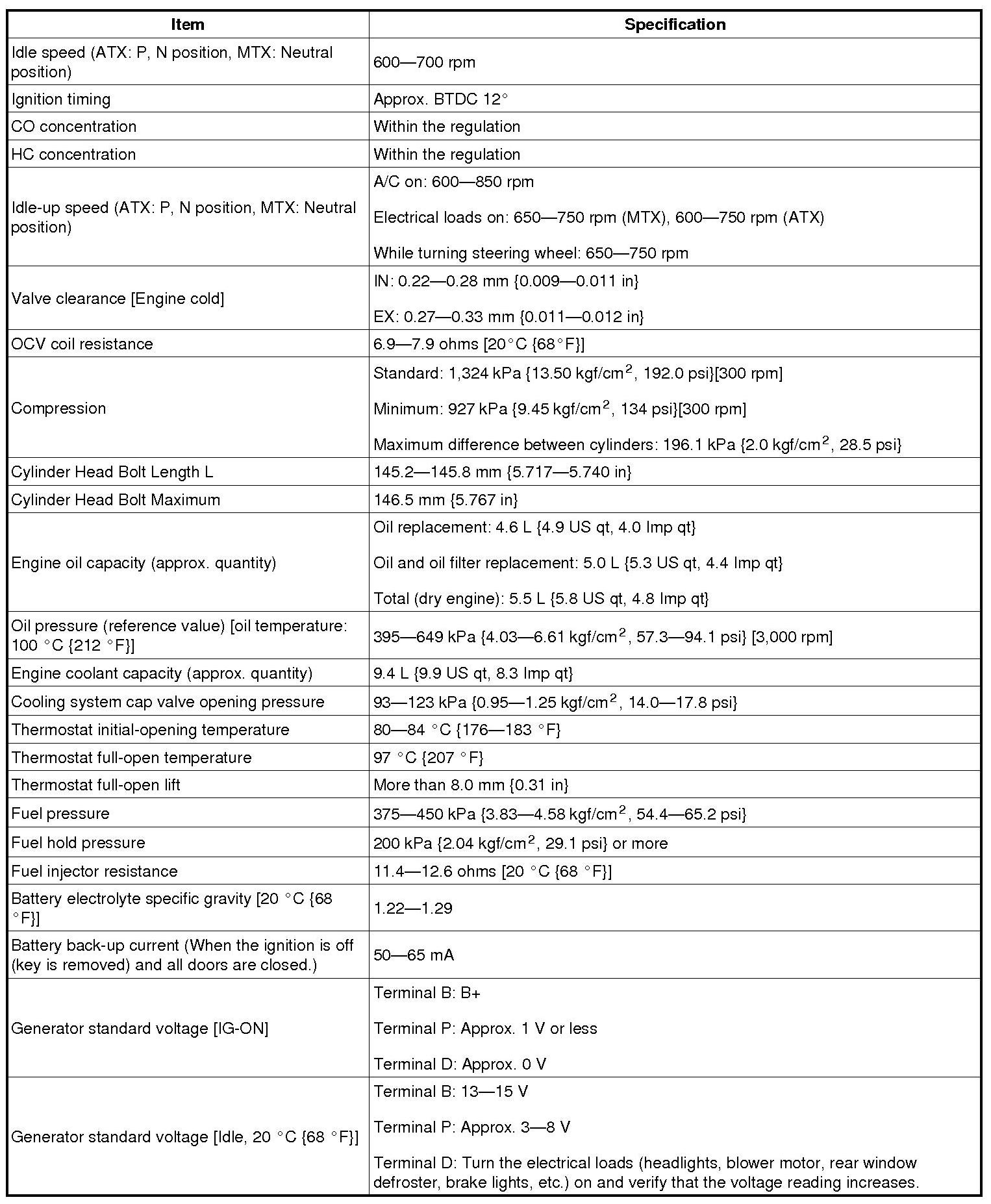

Engine Technical Data (Part 1):

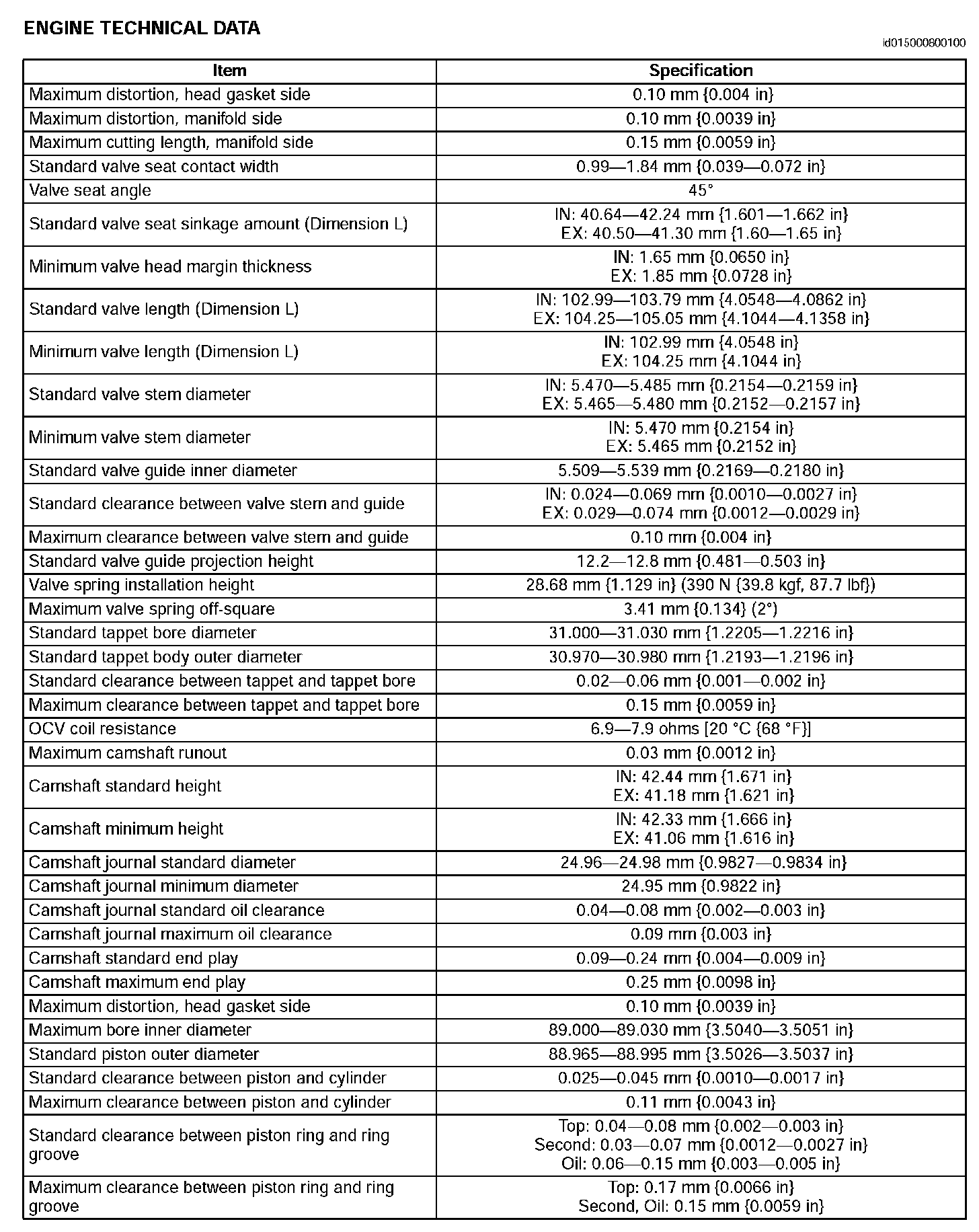

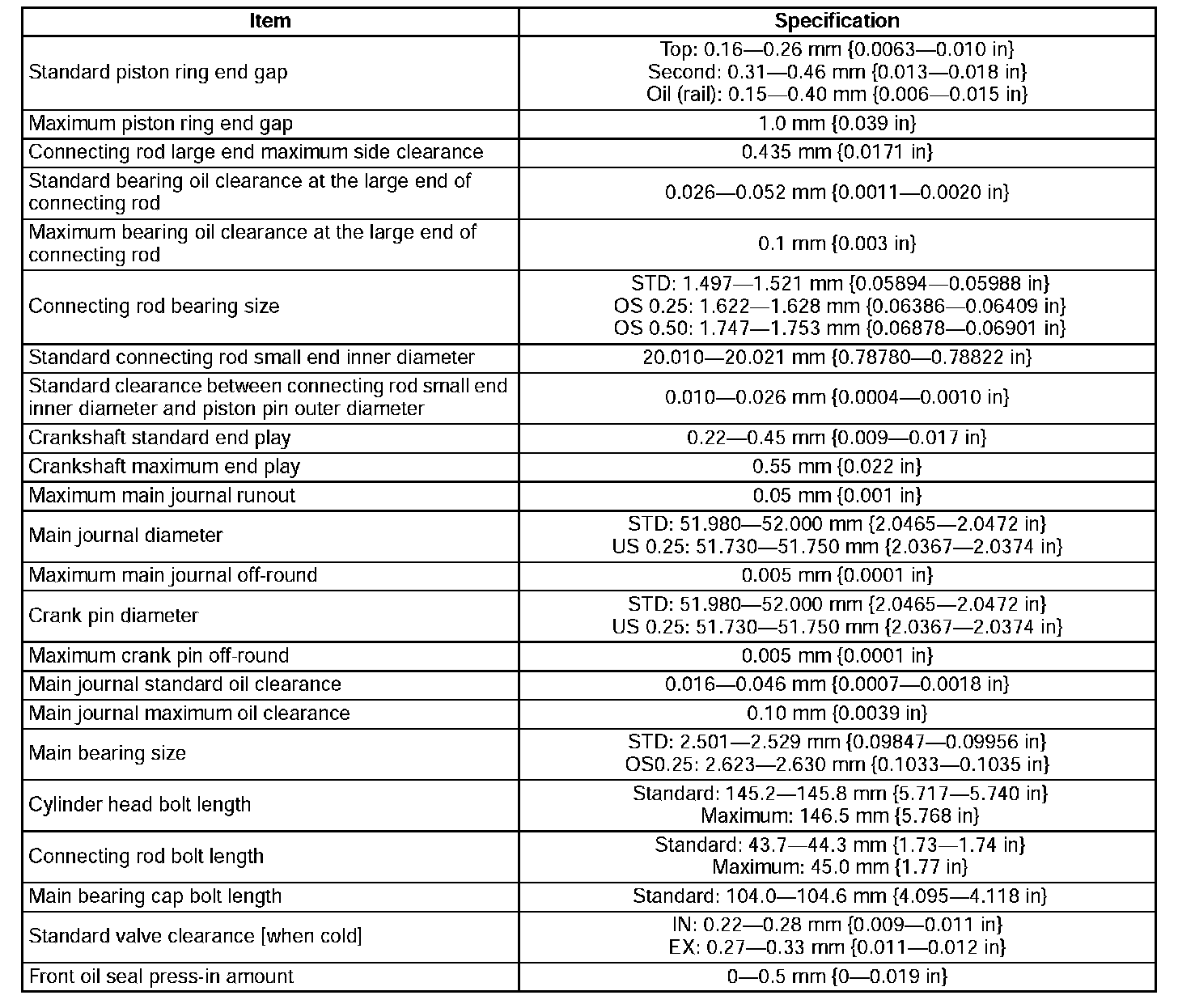

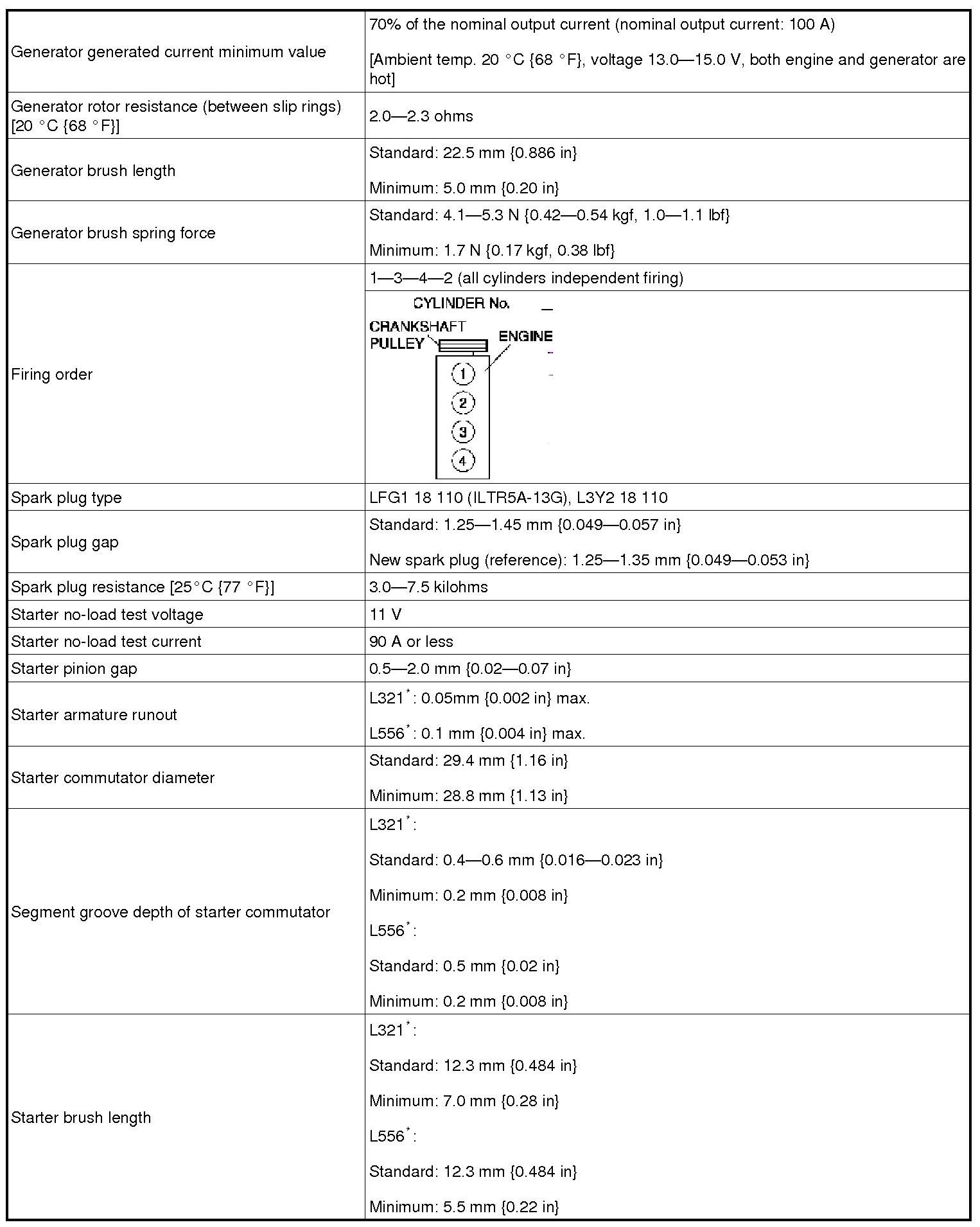

Engine Technical Data (Part 2):

ENGINE TECHNICAL DATA [L5]

*

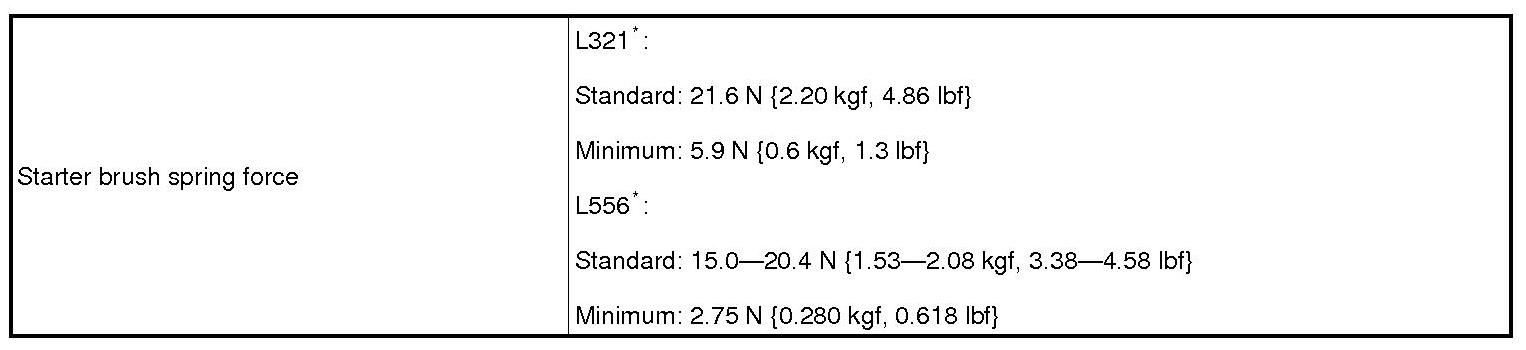

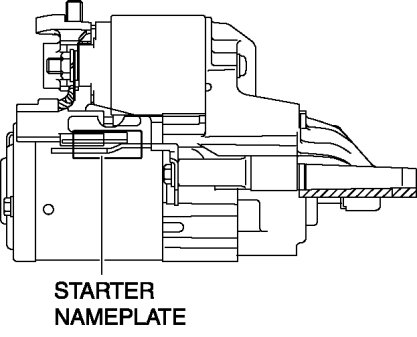

The first four digits of the part number indicated on the starter nameplate

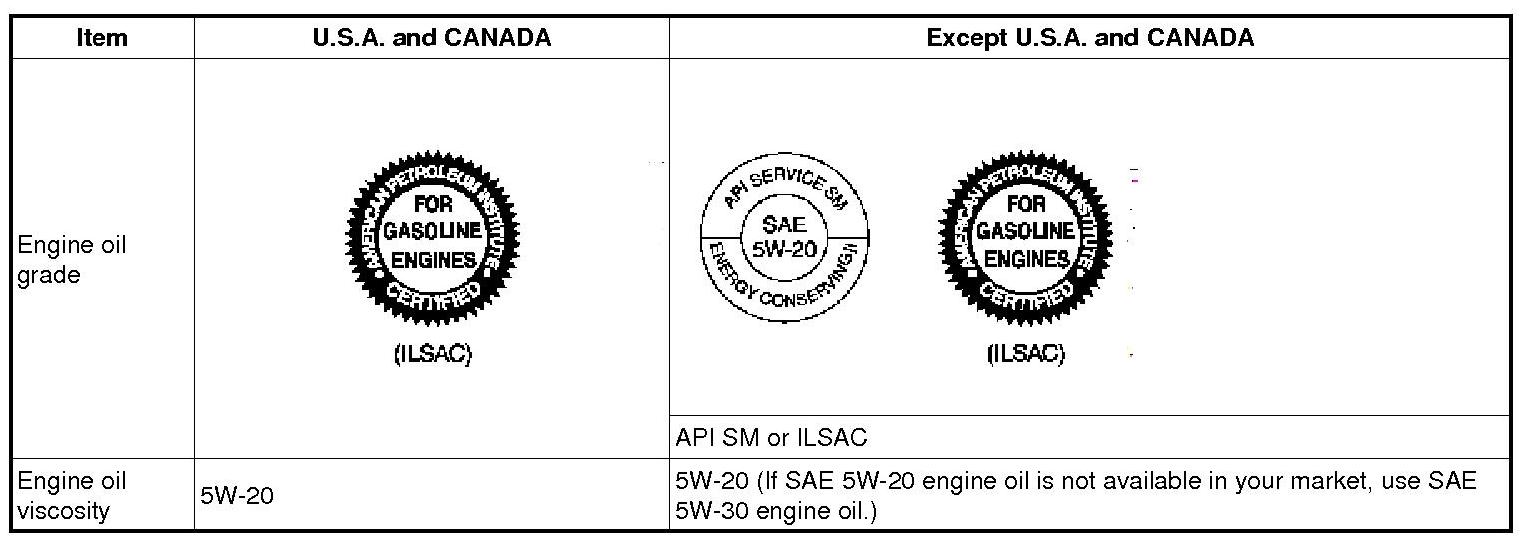

Engine oil specification
