Flex Plate

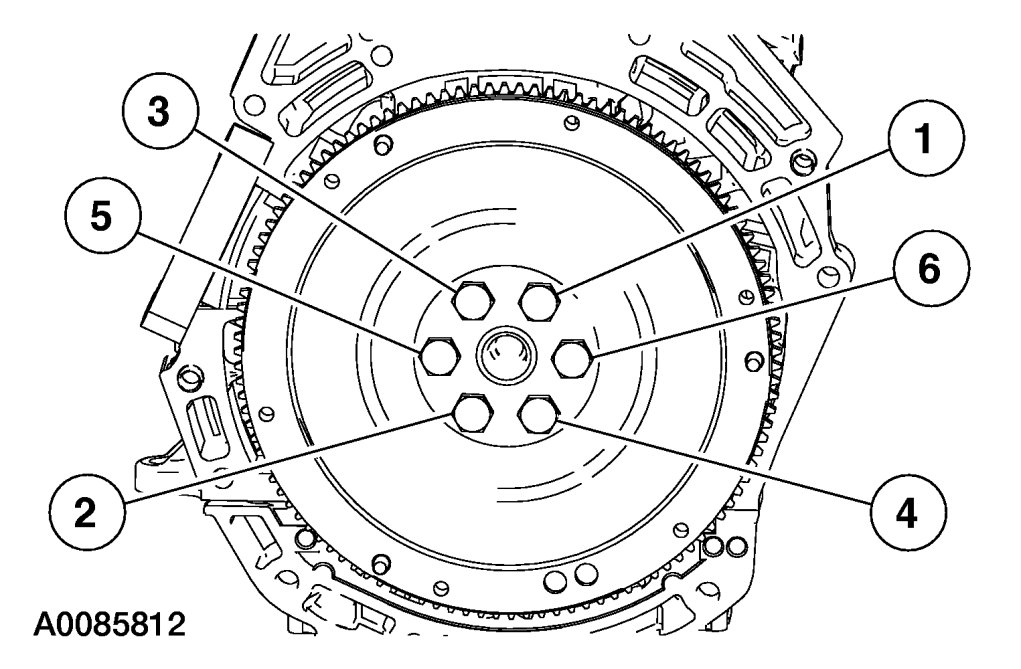

Tighten the bolts in the sequence shown in 3 stages.
Stage 1:
Tighten to 50 Nm {5.1 kgf-m, 37 ft-lbf}.
Stage 2:
Tighten to 80 Nm {8.2 kgf-m, 59 ft-lbf}.
Stage 3:
Tighten to 112 Nm {11.4 kgf-m, 83 ft-lbf}.
NOTE: Special bolts are used for installation. Do not use standard bolts.
