Shift Linkage: Adjustments

SELECTOR LEVER CABLE ADJUSTMENT - HYBRID

1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.

CAUTION:The ignition must be in the OFF position to make sure that the electronically controlled continuously variable transaxle (ECVT) and the engine are OFF.






2. Place the selector lever in the D position.





3. Remove the retainers and the LH splash shield.





4. Remove the 2 bolts and the transaxle selector lever cable splash shield.

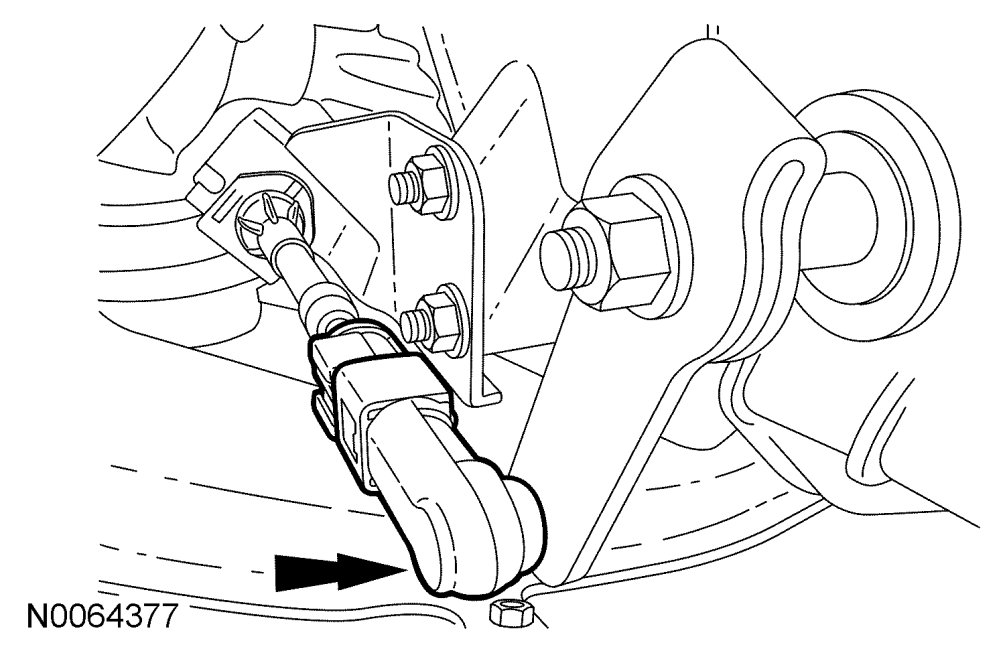

5. Remove the selector lever cable end from the manual control lever.





6. Place the manual control lever in DRIVE by positioning the manual control lever between the 2 ribs on the transaxle case.

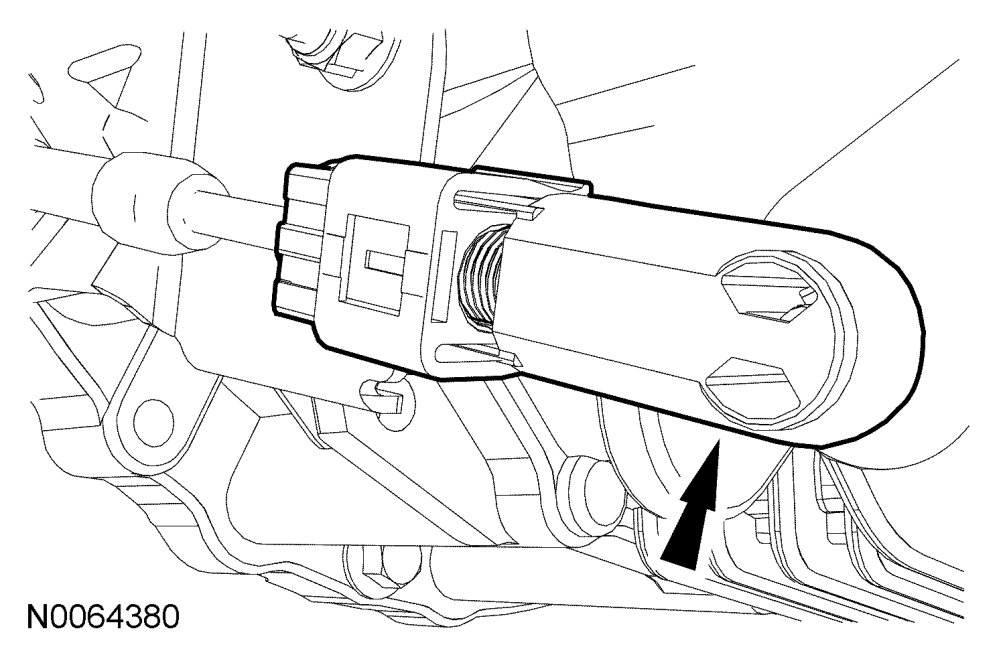

7. Release the selector lever cable adjuster lock.
a. Pull out on the selector lever cable adjuster lock tabs.

b. Slide the lock over to unlock the selector lever cable.

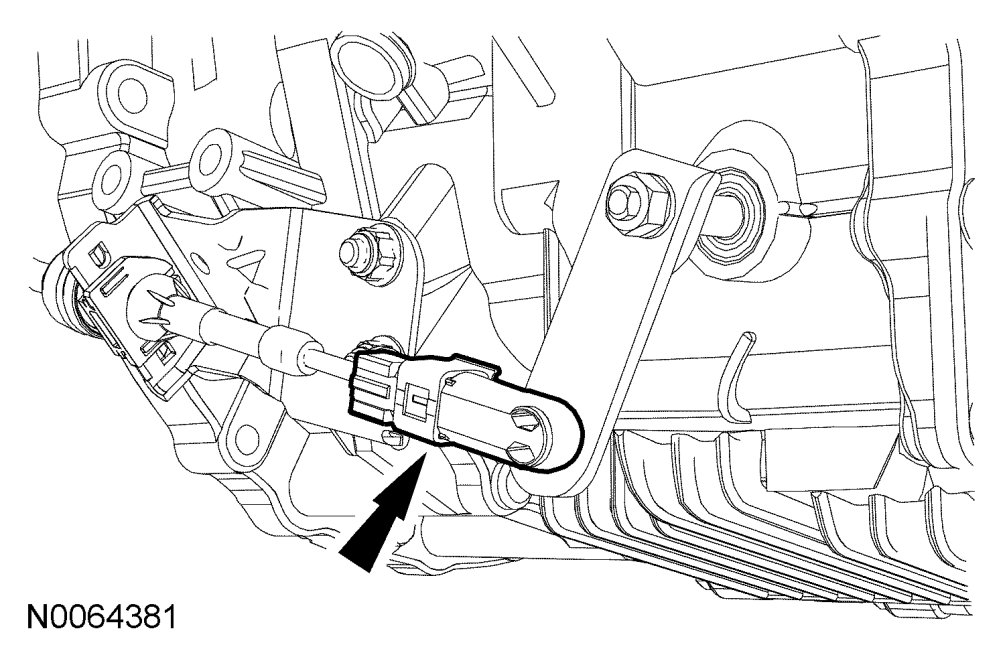

8. Align the selector lever cable end to the manual control lever ball stud and install it with the selector lever cable adjuster unlocked.





9. Slide the adjuster tab in place to lock the selector lever cable.

10. To verify the correct adjustment, observe the selector lever on the transaxle while an assistant shifts the transaxle selector lever to each range position, ending in the D position.





11. Install the transaxle selector lever cable splash shield.

- Tighten to 15 Nm {1.5 kgf-m, 133 in-lbf}.





12. Install the LH splash shield.
