Pinpoint Test 8: An Individual Button/Feature Is Inoperative From The Remote Keyless Entry (RKE) Transmitter




PINPOINT TEST 8: AN INDIVIDUAL BUTTON/FEATURE IS INOPERATIVE FROM THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER

Normal Operation

When any remote keyless entry (RKE) or integrated keyhead transmitter (IKT) button is pressed, the SJB receives and processes the command to provide the appropriate output.

Possible Causes
- Door locks
- Horn system
- Liftgate glass latch release
- Turn signal system
- Integrated keyhead transmitter (IKT)

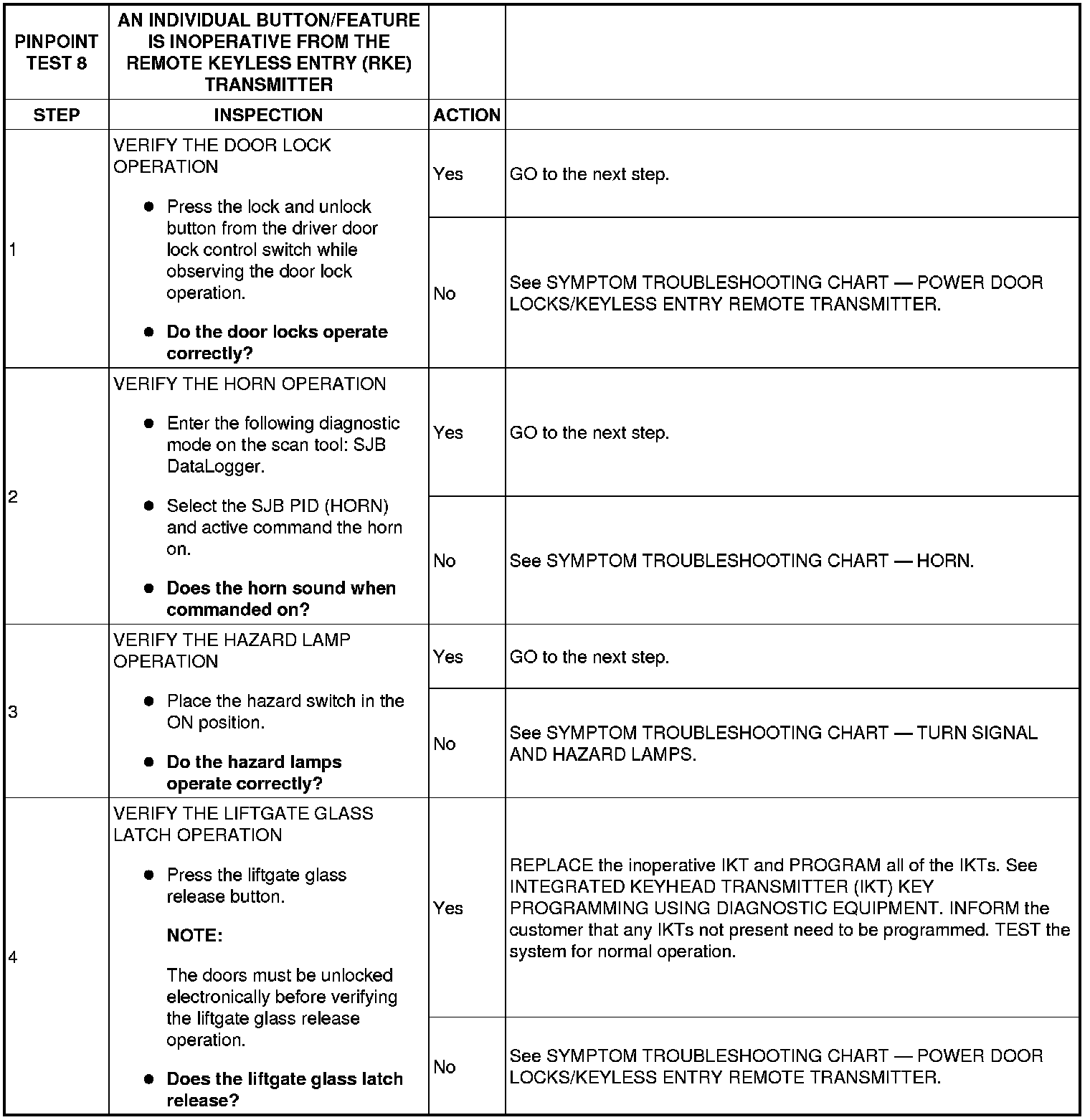

Diagnostic Procedure

NOTE:The panic feature will only operate when the key is in the OFF position.
