Suspension: Locations

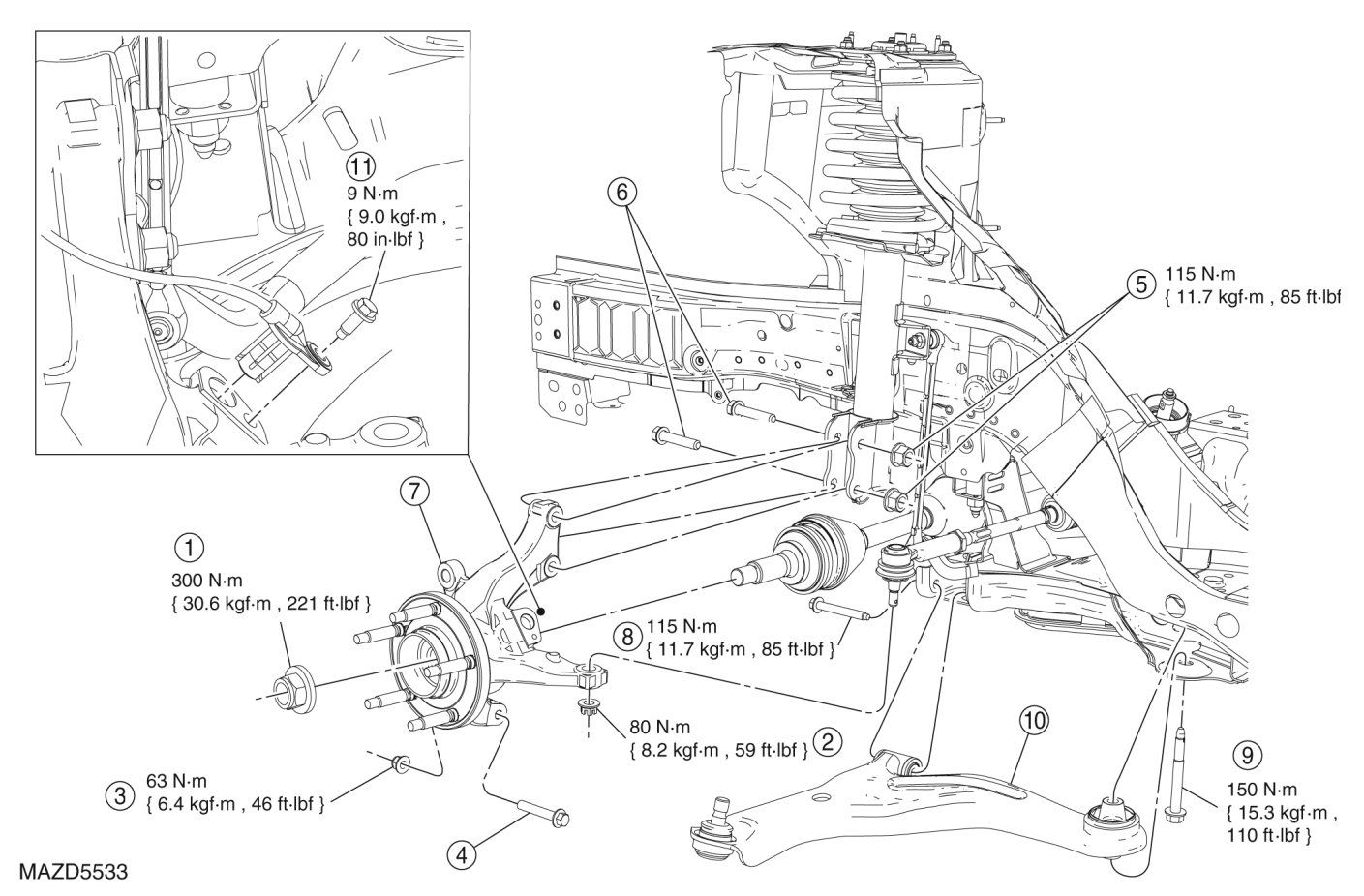

FRONT SUSPENSION - EXPLODED VIEW

1. For additional information, see Service and Repair, Front Suspension - Lower Arm Removal/Installation, Front Suspension - Wheel Bearing And Wheel Hub Removal/Installation, Front Suspension - Wheel Studs Removal/Installation, - Front Suspension - Strut And Spring - Front Removal/Installation, Front Suspension - Stabilizer Bar Removal/Installation, Service and Repair or Service and Repair
