Body - Liftgate Glass Broken

Bulletin No: 09-012/11

Last Issued: 03/11/2011

SUBJECT:
LIFTGATE GLASS BROKEN

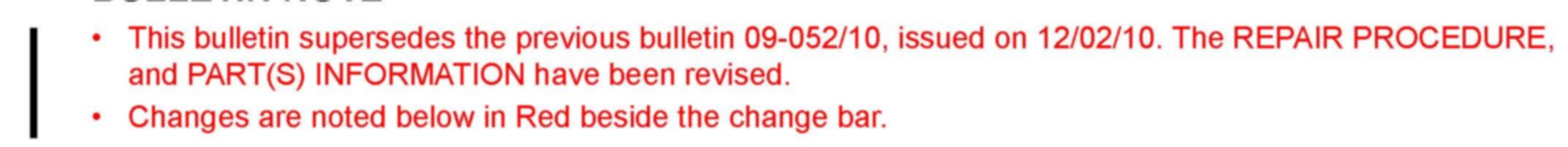

BULLETIN NOTE

APPLICABLE MODEL(S)/VINS
2010-2011 Tribute vehicles produced before October 16, 2010

DESCRIPTION

Some vehicles may experience the liftgate window glass breaking, typically when colder ambient temperatures are present.

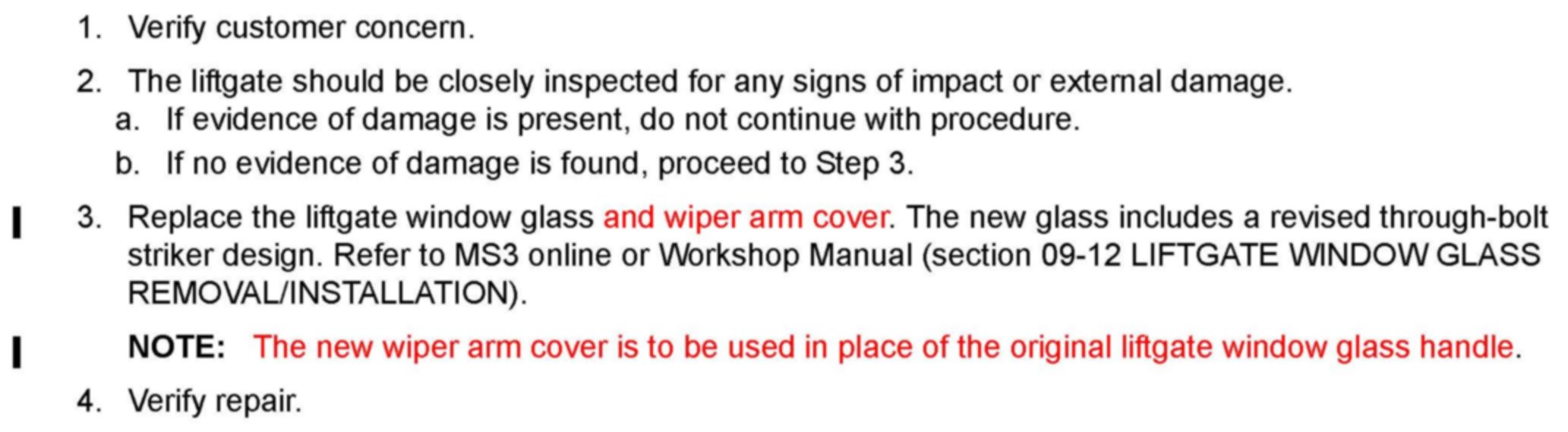

REPAIR PROCEDURE

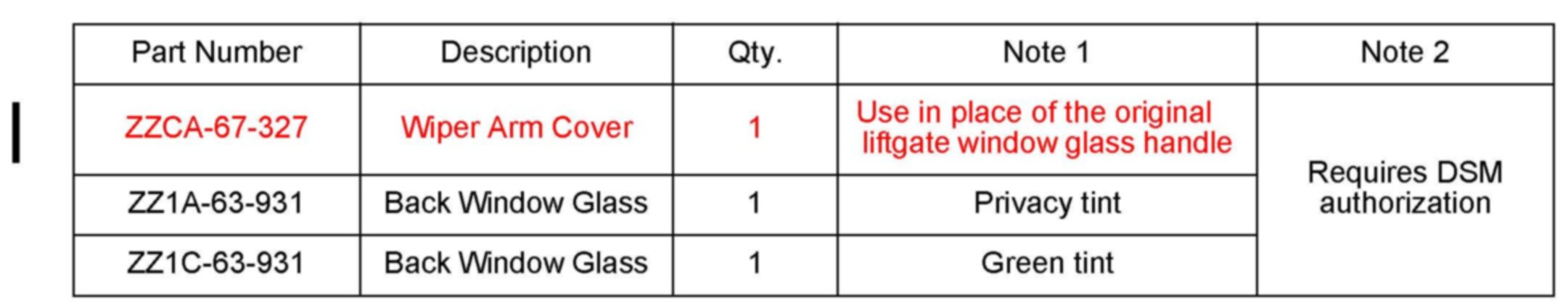

PARTS INFORMATION

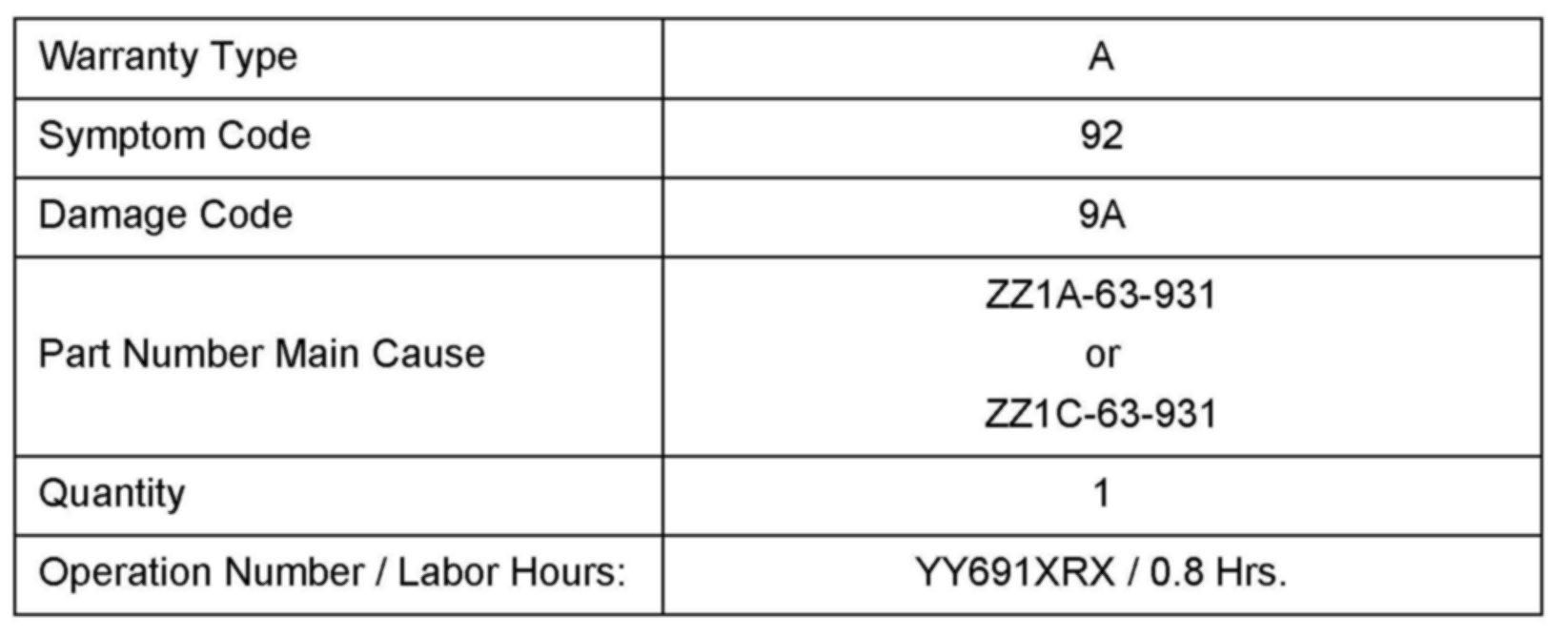

WARRANTY INFORMATION

NOTE:
^ This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair.

^ This repair will be covered under Mazda's New Vehicle Limited Warranty term.

^ Rear glass replacement requires DSM Authorization.

^ Additional diagnostic time cannot be claimed for this repair.
