Clutch Support Tower Disassembly/Assembly




CLUTCH SUPPORT TOWER DISASSEMBLY/ASSEMBLY

Disassembly

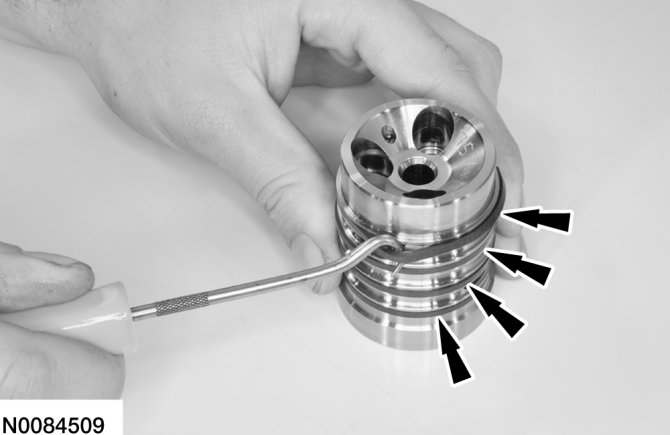

1. Using a suitable tool, remove and discard the 4 Teflon(R) seals.

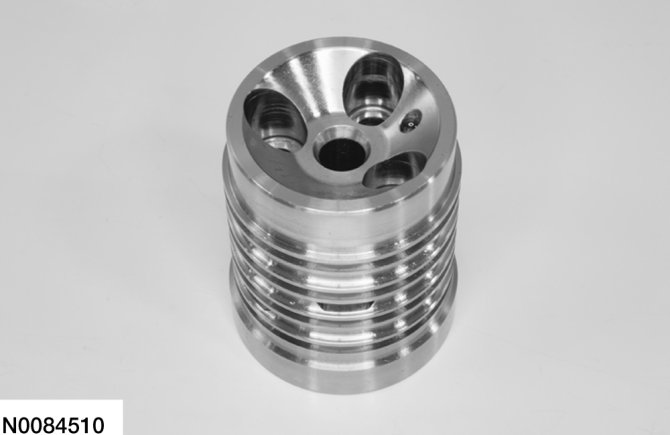

2. Clean and inspect the clutch support tower for damage. Install a new clutch support tower if damaged.

Assembly

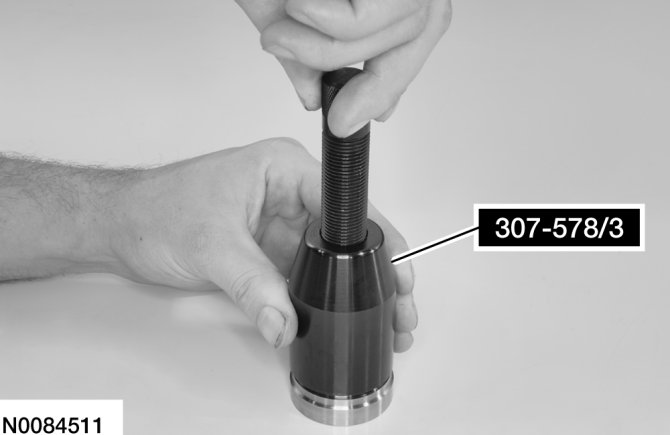

1. Install the Input Shaft Support Seal Installer on the clutch support tower and adjust the Input Shaft Support Seal Installer to align the bottom edge of the tool with the top edge of the bottom Teflon(R) seal groove.

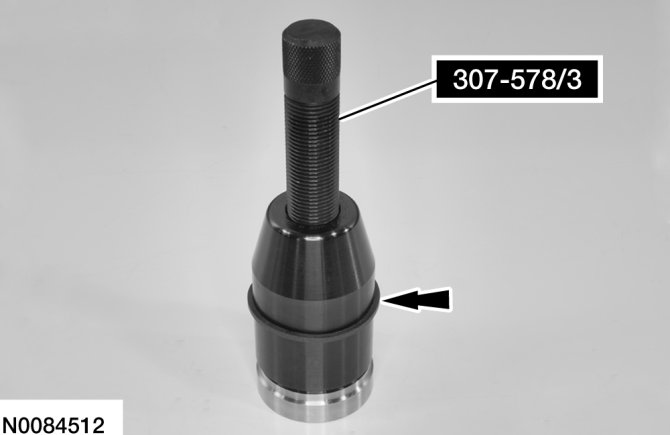

2. Install a new Teflon(R) seal on Input Shaft Support Seal Installer.

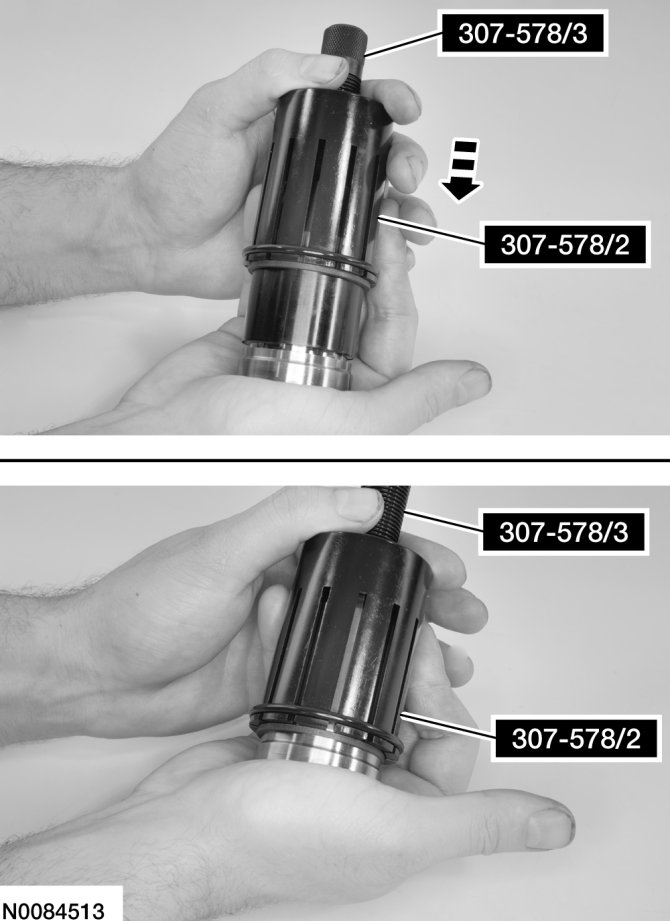

3. Install the Input Shaft Support Seal Installer. Using the Input Shaft Support Seal Installer, slide the Teflon(R) seal over the clutch support tower and into the groove.

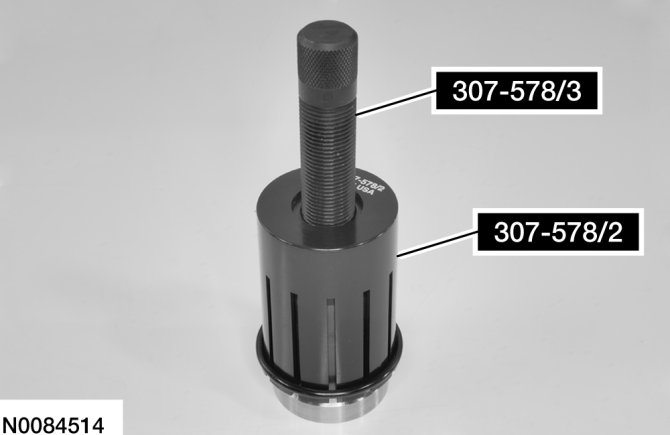

4. Remove the Input Shaft Support Seal Installer.

- Repeat Steps 1 through 4 for the other 3 Teflon(R) seals.

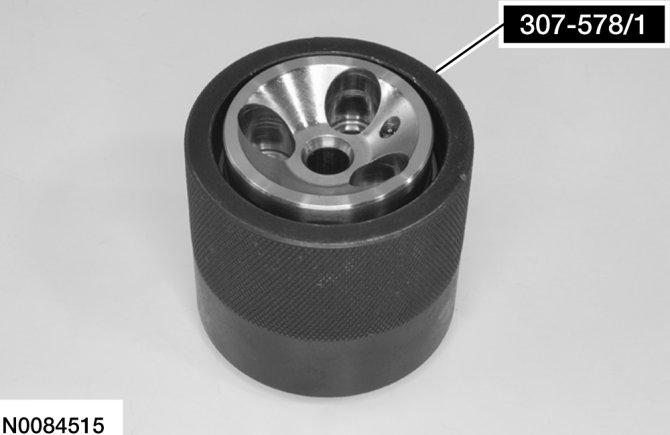

5. Install the Input Shaft Support Seal Installer on the clutch support tower to size the 4 Teflon(R) seals.
