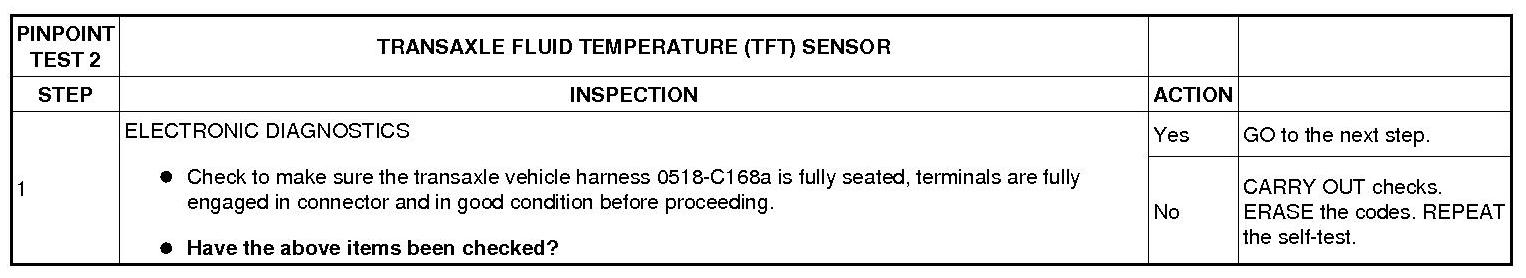

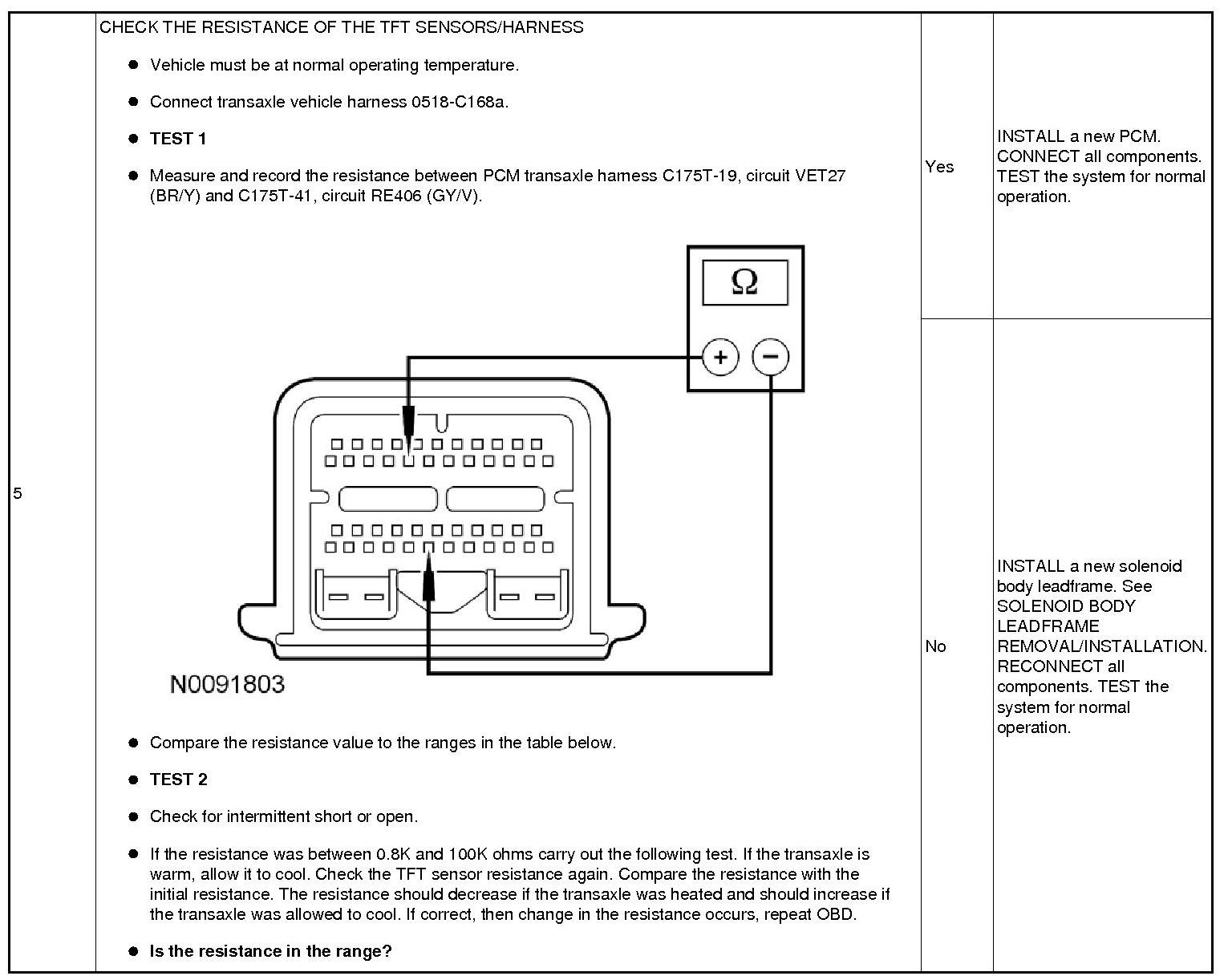

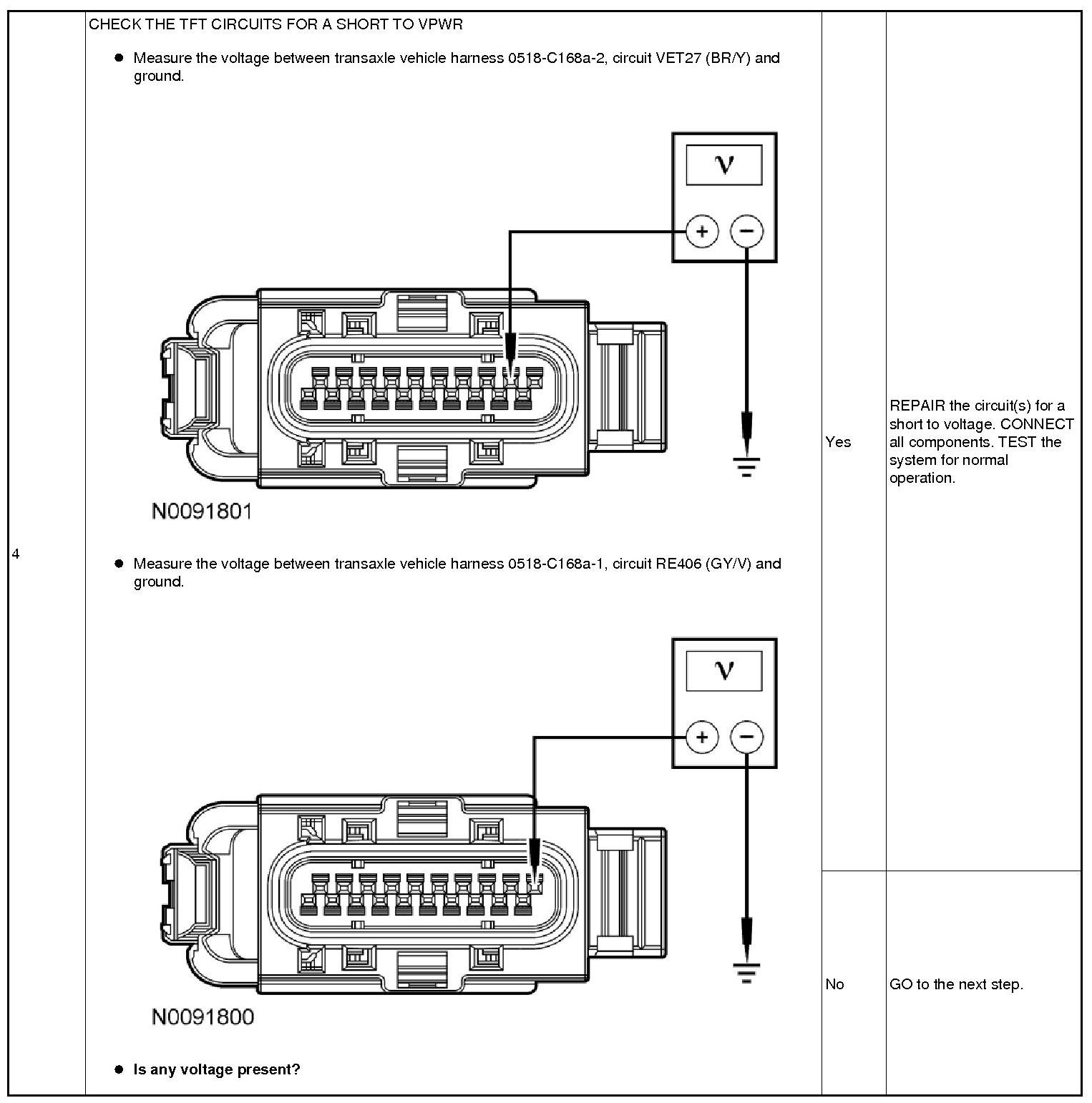

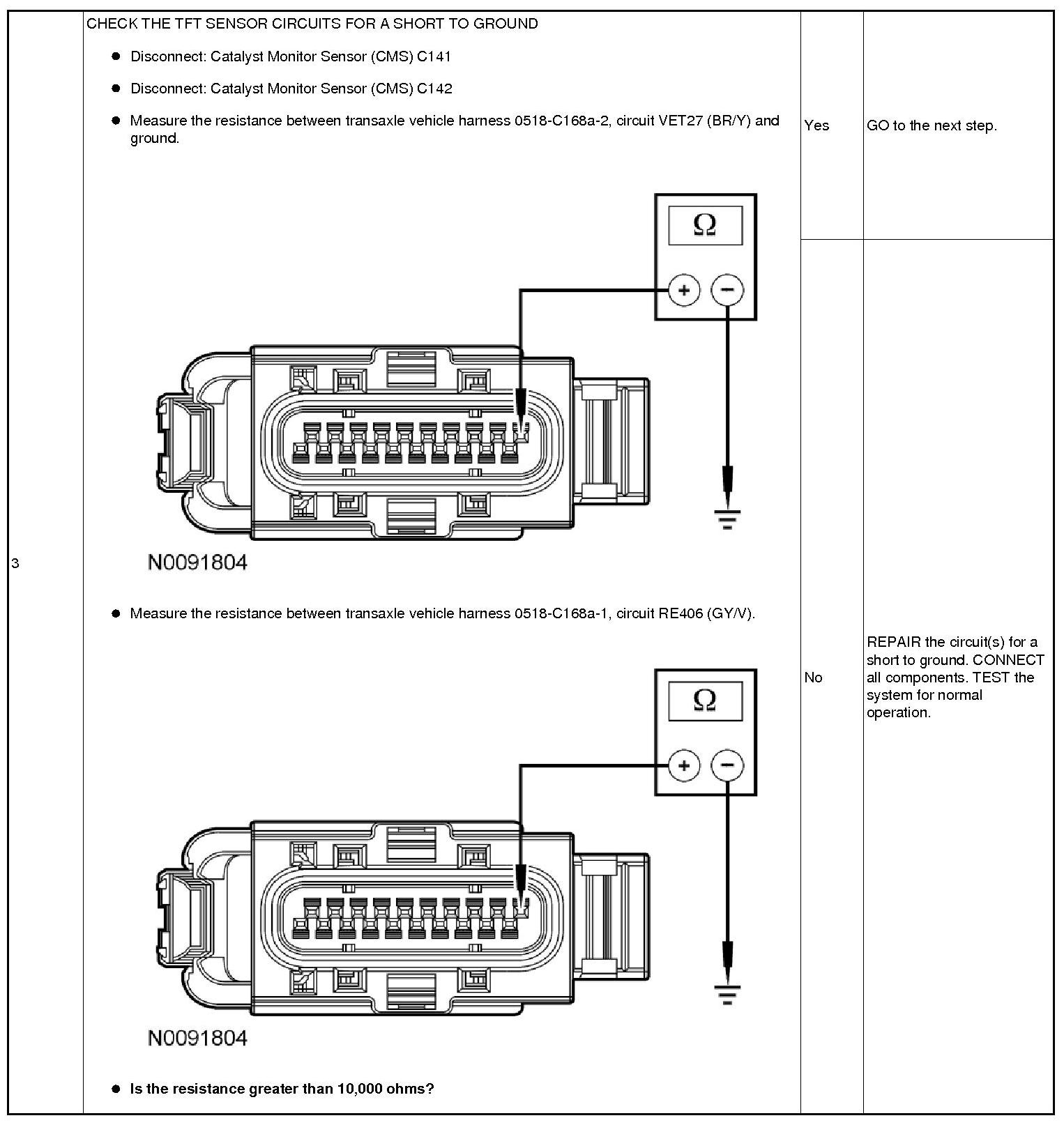

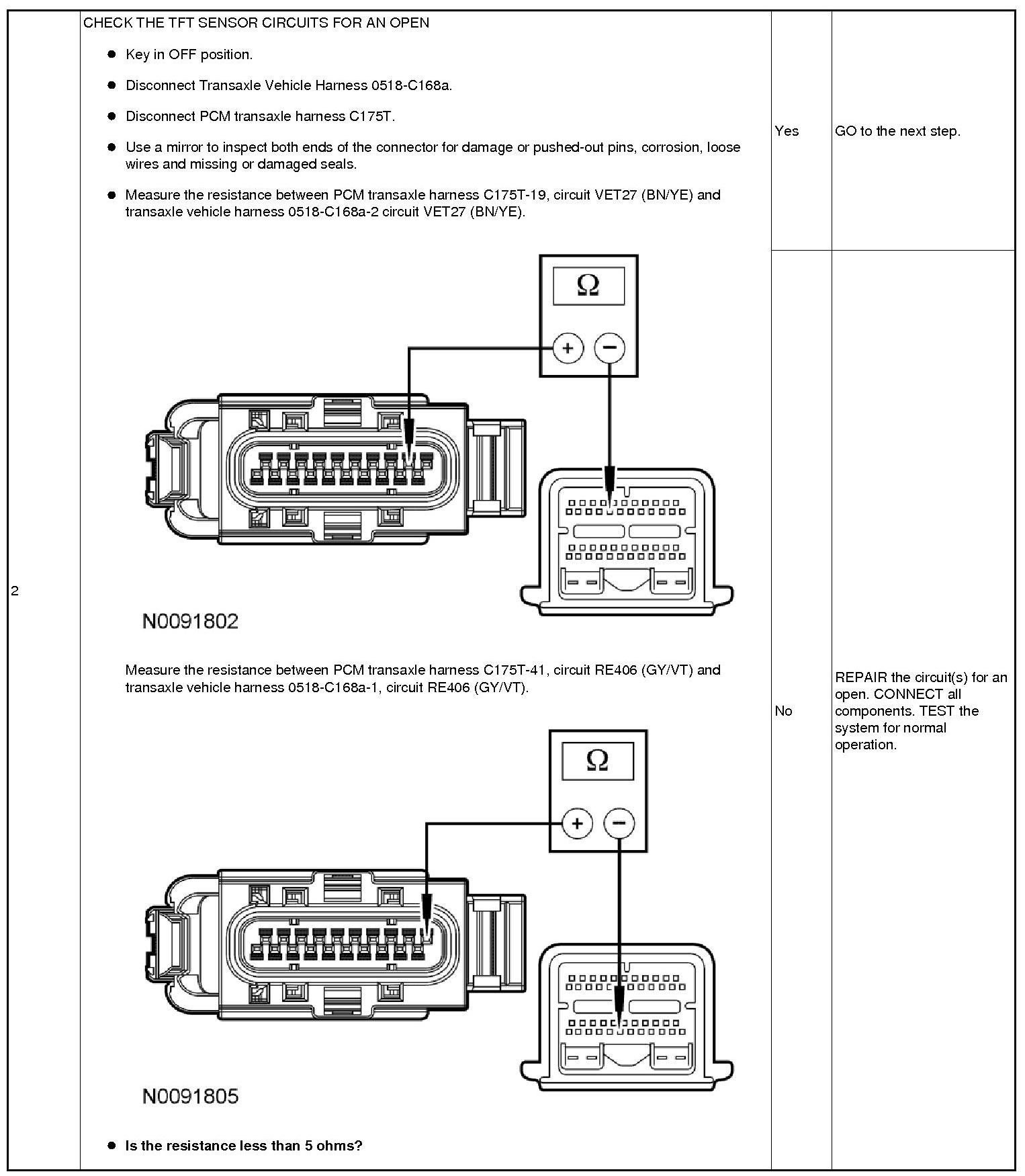

Pinpoint Test 2: Transaxle Fluid Temperature (TFT) Sensor
PINPOINT TEST 2: TRANSAXLE FLUID TEMPERATURE (TFT) SENSORNOTE:Refer to the transaxle connector illustrations and solenoid body leadframe internal wiring diagram preceding these pinpoint tests. See
[1][2]Automatic Transmission/Transaxle.

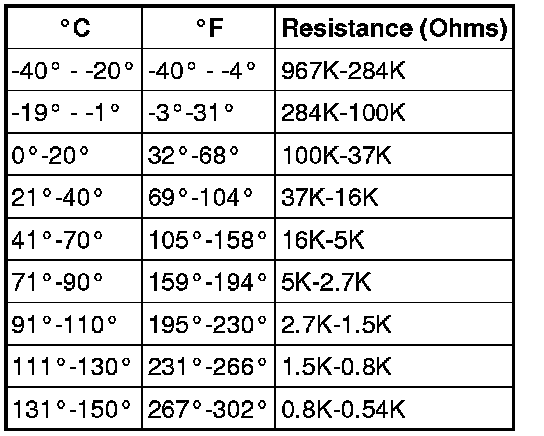

Transaxle Fluid Temperature
